Branch Pipes And

Nozzles

A length of pipe which has one or more branches.

SS 63mm Jumbo Curtain Nozzle

SS 63mm Jumbo Curtain Branch
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
94.88 94.88 USD
"Nuelite" Hand Control Multi Purpose Pistol Grip Type Nozzle - Newage
Made out of light weight Al. Alloy extrusions, hard
anodize, jet-spray pattern, shut-off valve with flow control
handle, flush with out shut-off, capable to discharge 600
LPM jet & spray, 35 Mtr Jet throw at 7 kg/cm2, twist
operation for Jet & Spray, 63mm male inst. inlet, As per
NFPA 1964.
150.23 150.23 USD
308.37 308.37 USD
Superfire Junior Selectable "O" Metric Fire Fighting Nozzle - UL Listed- Newage
Made of extruded all. Alloy hard anodized for
resistance to corrosion and wear. Select "O" metic mode
provides variable flow rates 115-225-360 and 475 lpm at 7
kg/cm2, and flush without shutting down. Spinning teeth
ring form water curtain for cooling and operators
protection from heat. Ball valve operated flow control
lever for shutting off. Inlet with 63mm male inlet
conforming to IS:903, Piston grip for greater contro
363.71 363.71 USD
Price against Inquiry 0.0 USD
"Superfire" Hand Control Multipurpose Selectable Gallonage Handle Type Nozzle - Newage
Pistol grip handle type nozzle, made out of light
weight Al. Alloy extrusion, hard anodize, selectable jet &
spray flow pattern from 360-475-600-750 and 900 LPM
and 45 Mtr maximum throw at 7 kg/cm2 pressure,
shut-off valve with flow control valve, Spinning teeth ring
generate < 120 deg Spray pattern, provision for flush
without shutting down, twist operation for jet-spray,
63mm male Inst. inlet as per IS:903, Confirming NFPA
1964.
395.34 395.34000000000003 USD
SS 63mm water Curtain Nozzle (SS Round Plate)
Instantaneous Male Inlet - Stainless Steel Conforming to Grade 1 or 4 of IS : 3444 : 1999
Deflector Plate : SS 304 , Thickness Mimimum 5 mm
Washer : IS 937
The Curtain range angle should be 160 -180 degree
The operating Pressure should be 5 to 12 kg (f) / Cm2
Price against Inquiry 0.0 USD
RAPID FIRE NOZZLE (Fast Action nozzle) CE MARKED
The nozzle shall be designed to provide a constant pressure of 100 PSI over the flow range between 70 – 200 GPM. The nozzle shall be able to allow for Straight Stream to Wide Fog patterns.
The nozzle shall have arrangements to flush without shutting down the flow. The nozzle shall be built from Hard Anodized Aluminium Alloy for excellent corrosion protection.
The nozzle shall have a pistol type grip which should provide excellent grip of the nozzle for fire fighters wearing gloves or using it bare handed. The shall have a Delrin / Non Metallic Ball Valve type mechanism for flow control.
The nozzle shall have a protective bumper at the top along with a Nylon Type teeth ring. The inlet of the nozzle shall be 63 mm British Standard Type Male Inst. Connection and shall have an inlet strainer of Stainless Steel to restrict the debris entering the nozzle flow stream.
The nozzle shall have laser engraved brand name, serial number, model number and QR Code from the OEM. The nozzle shall meet NFPA 1964 Standards and shall be CE certified to EN15182. The weight of the nozzle shall be less than 3 Kgs.
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
GM 50mm Branch Pipe with Nozzle
Gunmetal 50mm Branch Pipe with Nozzle
Price against Inquiry 0.0 USD

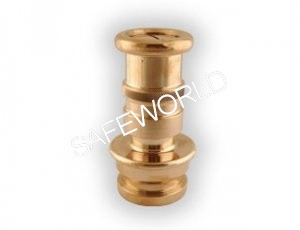

GM 50mm Male Diffuser Nozzle (NAVY TYPE)

Gunmetal 50mm Male Diffuser (Navy Type)
Price against Inquiry 0.0 USD
GM 63MM NUNAN TYPE BRANCH

GM 63mm Nunan Type Branch
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
GM 37mm Branch Pipe with Nozzle


Gunmetal 37mm Branch Pipe with Nozzle
Price against Inquiry 0.0 USD

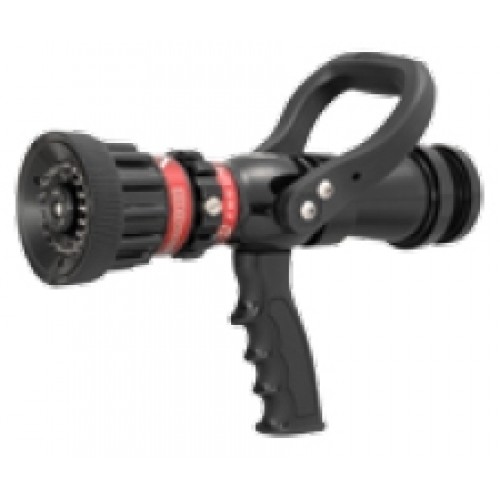

Select-O-Flow Type Branch (Hand line Nozzle)

SELECT-O-FLOW NOZZLE

ALUMINIUM/GUNMETAL COMBO, MALE INSTANTANEOUS INLET
Price against Inquiry 0.0 USD
Price against Inquiry 0.0 USD
