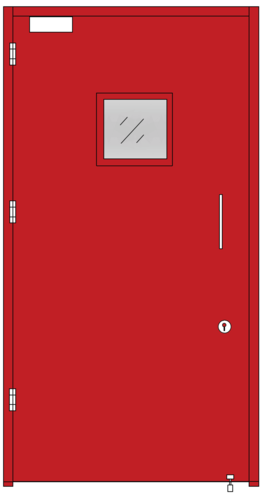

Fire Resistant Door

Fire Resistant Door hinge type 2 hrs fire rating with shutter designed and manufactured from 1.2 mm thick GI sheet duly affixed with internal stiffeners to mount accessories and internally insulated with fire-resistant insulation material and panel having an overall thickness of 45 mm. The frame is fabricated from 1.6 mm thick GI sheet having a single rebate having profile size of 125 x 65 mm with necessary stiffeners and duly treated with zinc etch primer with a coating of surface and final finish of powder coating as asked in the technical specifications. The entire door with frame is fabricated and manufactured as per BS 476 / IS 3614 to provide with integrity, stability and thermal insulation.

Supply of Fire Resistant Door hinge type 120 mins rating with shutter designed and manufactured from 1.2 mm
thick GI sheet duly affixed with internal stiffeners to mount accessories and internally insulated with fire
resistant insulation material (Rock Wool) and panel having overall thickness of 46 mm. The frame is fabricated
from 1.6 mm thick GI sheet having single rebate having profile size of 125 X 65 mm with necessary stiffeners and
duly treated with zinc etch primer with coating of surface and final finish of powder coating as asked in the
technical specifications. The entire door with frame is fabricated and manufactured as per IS 3614.

Supply Fire Resistant Door hinge type 2 HRS fire ratings with shutter designed and manufactured
from 1.2 mm thick GI sheet duly affixed with internal stiffeners to mount accessories and
internally insulated with fire resistant insulation material and panel having overall thickness of 45
mm. The frame is fabricated from 1.6 mm thick GI sheet having single rebate having profile size
of 125 x 65 mm with necessary stiffeners and duly treated with zinc etch primer with coating of
surface and final finish of powder coating as asked in the technical specifications. The entire door
with frame is fabricated and manufactured as per BS 476 / IS 3614 to provide with integrity,
stability and thermal insulation.
1500 mm (W) X 2400 mm (H) – Double Leaf Door
Accessories:
a. S S Ball Bearing Hinges – 08 nos. (Dorma Make)
b. Panic Bar for Double Leaf – 01 no. (Dorma Make)
c. Trim Device – 01 no. (Dorma Make)
d. Door Closer – 02 nos. (Dorma Make)
e. Vision Panel (265 X 165 mm clear wired glass) – 02 nos.

Frame: 50 X 50 X 5 mm angle frame.
Shutter: Fabricated from 16 Gauge GI Sheet final finish with Powder Coating.
Glass: 250 X 450 X 6 mm thick Clear Float Glass with accessories like Hinges / Lock / Rubber Beading and Handle.
