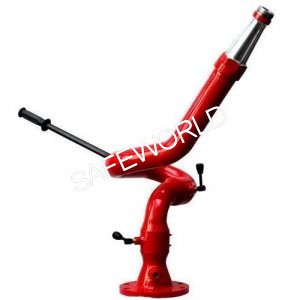

MS 63mm Water Monitor Stand Post Type

MS 63mm Water Monitor Stand Post Type

MS 63mm Stand Post Type Water Monitor

Available Options:
- Without Nozzle
- Aluminium Jet Nozzle
- Aqua Foam Nozzle made from Aluminum

$ 147.72 147.72 USD $ 147.72 VAT Excluded

0.00 ₹ VAT Excluded

Standard
- IS 8442
Size
Flange Dimensions
Inlet
Outlet
MOC - Body/All Parts
Body
Base Flange
Handle
Swivel Joint
Bends
Nozzle
Throw
Flow (in LPM)
Monitor Rotation
- 360 D
Monitor Elevation
- 90 Deg. above horizontal & 45 Deg. below horizontal
Test Pressure
Working Pressure
Other Parts
- Buff Polish
Handle ( Finish )
Brand
ISI Marked?
Guarantee (From Manufacturing Defect)
Type of Nozzle

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Flange Dimensions	As Per IS : OD: 200mm, PCD: 160mm, ID: 75mm, 19mm hole , 4 number of hole or As Per ANSI: OD: 190mm, PCD: 152.4mm , ID: 75mm, 19mm Hole, 4 Number of hole
Standard	IS 8442
Size	63mm (2 1/2")
Inlet	Flanged - 75/100 NB IS:1538/ ANSI B16.5 150#
Outlet	32 mm (min) bore Solid Jet Nozzle

MoC (Material of Construction)
MOC - Body/All Parts	MS ERW Pipe, Seamless steel tubes
Body	Powder Coated Red
Base Flange	Carbon (Mild) Steel
Handle	Carbon (Mild) Steel
Swivel Joint	Gun Metal
Bends	Carbon (Mild) Steel
Nozzle	Aluminium, Gun Metal

Functional Parameters
Throw	53 Meters
Flow (in LPM)	Flow 1750 LPM
Monitor Rotation	360 D
Monitor Elevation	90 Deg. above horizontal & 45 Deg. below horizontal

Inspection Parameters
Test Pressure	21 Kg/Cm2
Working Pressure	7 Kg/Cm2

Finish
Other Parts	Buff Polish
Handle ( Finish )	Painted Black

General
Type of Nozzle	Aluminum Jet Nozzle or Gunmetal Jet Nozzle or Aluminum Aqua Foam Nozzle or Gunmetal Aqua Foam Nozzle or Without Nozzle or SS Aqua Foam Nozzle or Jet & Spray Nozzle (Master Stream Nozzle)
Brand	DEVRAJ/SAFEWORLD
ISI Marked?	Yes
Guarantee (From Manufacturing Defect)	1 year
