  2. MS 63mm Water Monitor Stand Post Type

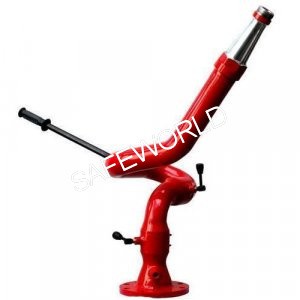

MS 63mm Water Monitor Stand Post Type

https://www.esafeworld.com/web/image/product.template/20438/image_1920?unique=cbf42f5
(0 avis)


MS 63mm Stand Post Type Water Monitor

Ball Bearing Swivel Joints with locking arrangement, Bar Type Handle, Permitting of 360 Degrees Horizontal, +80 to -45 Degrees vertical traverse, drain valve, with nozzle having female threaded inlet, suitable for a discharge of 1750 LPM at 7 kg/cm2 Pressure, 53 mter horizontal throw at 30 Degree

Available Options:
- Without Nozzle
- Aluminium Jet Nozzle
- Aqua Foam Nozzle made from Aluminum

$ 139,93 139.93 USD $ 139,93 Hors TVA

0,00 ₹ Hors TVA

Price against Inquiry

  • Standard
  • Size
  • Flange Dimensions
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • Base Flange
  • Handle
  • Swivel Joint
  • Bends
  • Nozzle
  • Throw
  • Flow (in LPM)
  • Monitor Rotation
  • Monitor Elevation
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Handle ( Finish )
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Type of Nozzle

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales
Garantie satisfait ou remboursé de 30 jours
Expédition : 2-3 jours ouvrables


Spécifications

Design Parameters
Flange Dimensions As Per IS : OD: 200mm, PCD: 160mm, ID: 75mm, 19mm hole , 4 number of hole ou As Per ANSI: OD: 190mm, PCD: 152.4mm , ID: 75mm, 19mm Hole, 4 Number of hole
Standard IS 8442
Size 63mm (2 1/2")
Inlet Flanged - 75/100 NB IS:1538/ ANSI B16.5 150#
Outlet 32 mm (min) bore Solid Jet Nozzle
MoC (Material of Construction)
MOC - Body/All Parts MS ERW Pipe, Seamless steel tubes
Base Flange Carbon (Mild) Steel
Handle Carbon (Mild) Steel
Swivel Joint Gun Metal
Bends Carbon (Mild) Steel
Nozzle Aluminium, Gun Metal
Functional Parameters
Throw 53 Meters
Flow (in LPM) Flow 1750 LPM
Monitor Rotation 360 D
Monitor Elevation 90 Deg. above horizontal & 45 Deg. below horizontal
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polish
Handle ( Finish ) Painted Black
General
Type of Nozzle Aluminum Jet Nozzle (32mm Bore) ou Gunmetal Jet Nozzle ou Aluminum Aqua Foam Nozzle ou Gunmetal Aqua Foam Nozzle ou Without Nozzle ou SS Aqua Foam Nozzle ou Jet & Spray Nozzle (Master Stream Nozzle)
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
