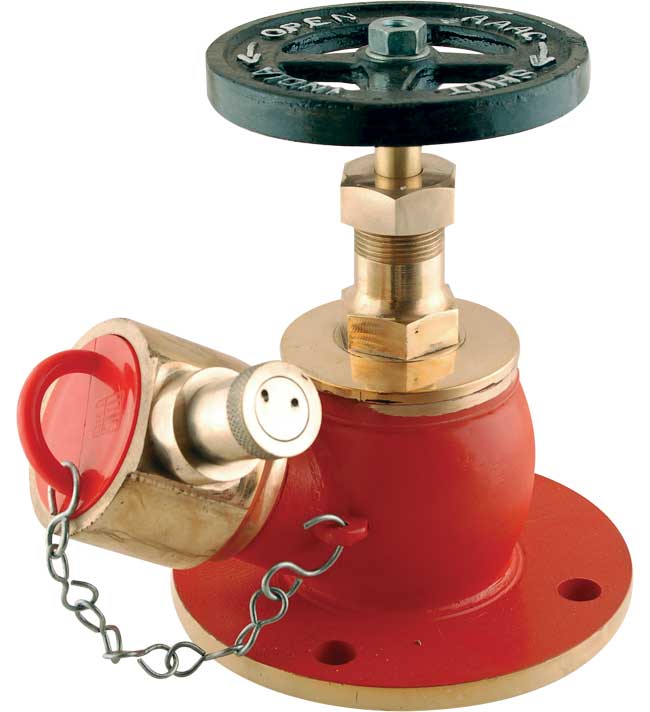

Marine Nickel Aluminium Bronze Fire Hydrant valves, Globe SD- Angle with suction side flanged end and discharge male threaded end fitted with Double pull Morris female coupling with NAB cap & 3mm SS Chain as per DIN std, PN16. Working Pressure: 09 bar.
Material: Body: Nickel Al-Bronze (NES 747 part-2), Internals (Disc, seat, spindle: Nickel Al-Bronze (NES 747 part-2), Internal fasteners: NAB.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days

We PROVIDE BUYBACK OPTION!

We buyback old hydrant valves as reasonable rates looking at the condition of the valve and components.

Odoo • Text and Image


Specifications for NAB 63mm Hydrant Valve

Design Parameters
Flange Dimensions As per IS 1538 or As Per IS BSEN1092 Part 3
Design Standard (General Reference) IS 5290 Type A
Size 63mm (2 1/2")
Inlet Flanged
Outlet Female Instantaneous
Number of Holes in Flange 4
Flange ID (Bore Dia) 75mm (3")
MoC (Material of Construction)
Outlet Adaptor Single Pull Type Lug Adaptor or Double Lug Type Adaptor or Q.R. Type Adaptor
Chain GI or S.S or MS
Male Blank Cap PVC Blank Cap or Gunmetal Blank Cap or ABS Plastic Blank cap or NAB Blank Cap
Rubber Parts Natural Rubber (As per IS) or Neoprene Rubber
MOC - Body/All Parts Nickel Aluminum Bronze
MOC Wheel Cast Iron
Spindle Nickel Aluminum Bronze
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Red
Other Parts Buff Polish
Wheel Painted Black
General
Brand DEVRAJ
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 2 years
