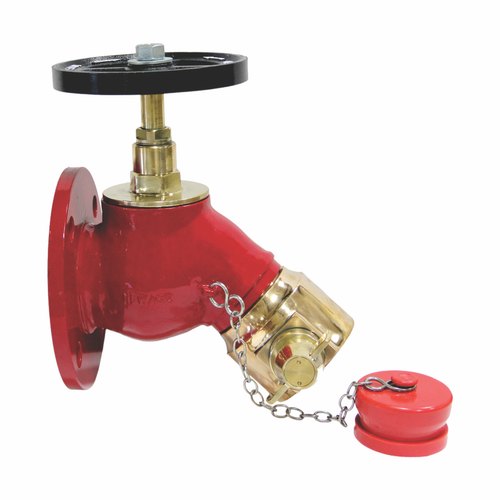

GM 63mm Hydrant Valve Bib Nose Type

GM 63mm Hydrant Valve Bib Nose Type

Devraj Make Gunmetal 63mm Hydrant Valve Bib Nose Type

Price against Inquiry

Design Standard (General Reference)
Size
Inlet
Outlet
Flange OD
Flange Thickness
Flange PCD
Number of Holes in Flange
Flange ID (Bore Dia)
MOC - Body/All Parts
Outlet Adaptor
Chain
MOC Wheel
Spindle
Male Blank Cap
Rubber Parts
Seat Pressure
Test Pressure
Working Pressure
Body
Other Parts
- Buff Polish
Wheel
Brand
Guarantee (From Manufacturing Defect)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Design Standard (General Reference)	BS 5401
Size	63mm (2 1/2")
Inlet	Flanged
Outlet	Female Instantaneous
Flange OD	185mm
Flange Thickness	12mm
Flange PCD	145mm
Number of Holes in Flange	4
Flange ID (Bore Dia)	63mm (2 1/2")

MoC (Material of Construction)
MOC - Body/All Parts	Copper Alloy
Outlet Adaptor	Single Pull Type Lug Adaptor
Chain	GI
MOC Wheel	Cast Iron
Spindle	Brass
Male Blank Cap	PVC Blank Cap
Rubber Parts	Natural Rubber (As per IS)

Inspection Parameters
Seat Pressure	14kg/cm2
Test Pressure	21 Kg/Cm2
Working Pressure	7kg / cm2

Finish
Body	Powder Coated Red
Other Parts	Buff Polish
Wheel	Painted Black

General
Brand	SAFEWORLD
Guarantee (From Manufacturing Defect)	2 years
