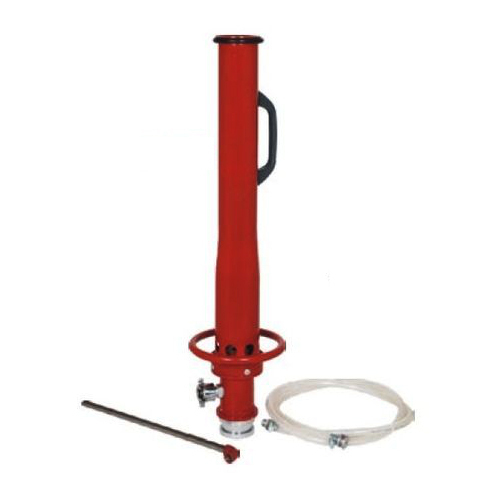

AL 63mm FB10x Foam Making Branch Pipe

https://www.esafeworld.com/web/image/product.template/11333/image_1920?unique=772e4e7
(0 review)

47.63 47.63 USD 47.63 VAT Excluded

0.00 ₹ VAT Excluded

Price against Inquiry

(47.63 / unit)
  • Pickup Arrangement
  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • MoC - Inlet
  • Ventury
  • Pick-up Tube
  • Rubber Washer/Ring
  • Other Working Parts
  • MOC Wheel
  • Throw
  • Pickup Tube
  • Basket
  • Flow (in LPM)
  • Working Pressure
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Length

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Pickup Arrangement With In-built Pickup Arrangement or Without Pickup Arrangement or 20mm Quick Release Pickup Tube
Design Standard (General Reference) IS 2097
Size 63mm (2 1/2")
Inlet Male Instantaneous
Outlet Foam Discharge pipe
MoC (Material of Construction)
MoC - Inlet Inlet - Gunmetal or Inlet - Aluminium or Inlet - Stainless Steel
MOC - Body/All Parts Aluminised Glass Fiber
Ventury Gun Metal
Pick-up Tube PVC Braided Pipe
Rubber Washer/Ring Natural Rubber
Other Working Parts Aluminium
MOC Wheel Aluminium
Functional Parameters
Pickup Tube With Pickup Tube or Without Pickup Tube
Flow (in LPM) 450 to 500 LPM or 950 LPM (250 GPM)
Throw 18 Meter Jet
Basket 10 Times
Inspection Parameters
Working Pressure 7 Kg/Cm2
Finish
External Parts Painted Red, Powder Coated Red, Powder Coated Yellow
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
Uncategorized
Length 880mm
