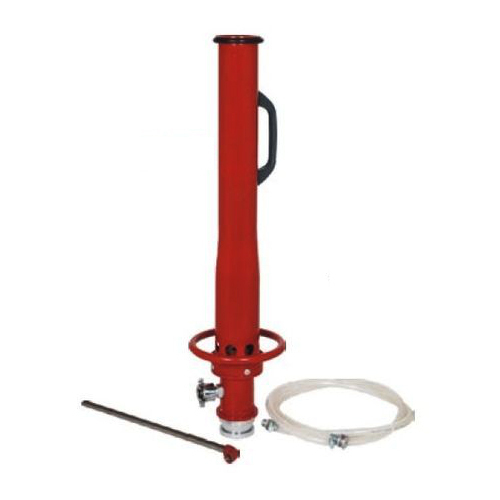

AL 63mm FB10x Foam Making Branch Pipe

https://safeworld.odoo.com/web/image/product.template/11333/image_1920?unique=772e4e7
(0 avis)

48,38 48.38 USD 48,38 Hors TVA

0,00 ₹ Hors TVA

Price against Inquiry

  • Pickup Arrangement
  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • MoC - Inlet
  • Ventury
  • Pick-up Tube
  • Rubber Washer/Ring
  • Other Working Parts
  • MOC Wheel
  • Throw
  • Pickup Tube
  • Basket
  • Flow (in LPM)
  • Working Pressure
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Length

Cette combinaison n'existe pas.

Conditions générales
Garantie satisfait ou remboursé de 30 jours
Expédition : 2-3 jours ouvrables


Spécifications

Design Parameters
Pickup Arrangement With In-built Pickup Arrangement ou Without Pickup Arrangement ou 20mm Quick Release Pickup Tube
Design Standard (General Reference) IS 2097
Size 63mm (2 1/2")
Inlet Male Instantaneous
Outlet Foam Discharge pipe
MoC (Material of Construction)
MoC - Inlet Inlet - Gunmetal ou Inlet - Aluminium ou Inlet - Stainless Steel
MOC - Body/All Parts Aluminium
Ventury Gun Metal
Pick-up Tube PVC Braided Pipe
Rubber Washer/Ring Natural Rubber
Other Working Parts Aluminium
MOC Wheel Aluminium
Functional Parameters
Pickup Tube With Pickup Tube ou Without Pickup Tube
Flow (in LPM) 450 to 500 LPM ou 950 LPM (250 GPM)
Throw 18 Meter Jet
Basket 10 Times
Inspection Parameters
Working Pressure 7 Kg/Cm2
Finish
External Parts Painted Red, Powder Coated Red, Powder Coated Yellow
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
Sans catégorie
Length 880mm
