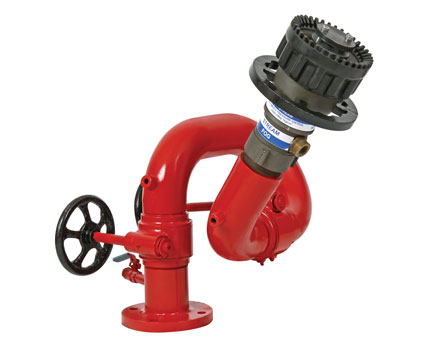

SS 75mm Water Cum Foam Monitor - UL Listed
Stand Post type UL LISTED WATER CUM FOAM MONITOR having STAINLESS STEEL (SS-316) Monitor Barrel and the size of Barrel is: 75mm (3”) and 100mm flanged inlet, with a capacity of discharge flow is 500 US GPM @7kg/cm² with STAINLESS STEEL (SS-316) Jet –Spray & Aqua fog Non-aspirating Self inducting type Nozzle and Gear operated STAINLESS STEEL (SS-316) swivel Joints with WORM SHAFT AND WORM WHEEL (for individual operations) along with PVC PICK-UP TUBE WITH STAINLESS STEEL DIP TUBE suitable for manual operation with self-induction.
Specifications
| Design Parameters | |
|---|---|
| Inlet Flange Size | 100mm |
| Size | 75mm (3") |
| MoC (Material of Construction) | |
|---|---|
| MOC - Body/All Parts | Stainless Steel (SS 316) |
| Pick-up Tube | With PVC Pick-Up Tube |
| Throw (Jet Setting) | 12mm |
| Swivel Joint | WORM SHAFT AND WORM WHEEL (for individual operations) |
| Functional Parameters | |
|---|---|
| Flow (in LPM) | Flow of 225 lpm at 7 kgf/cm2 |
| Discharge Capacity | 500 US GPM @7kg/cm² |
| General | |
|---|---|
| Type of Nozzle | Aqua fog Non-aspirating Self inducting type Nozzle and Gear operated |
