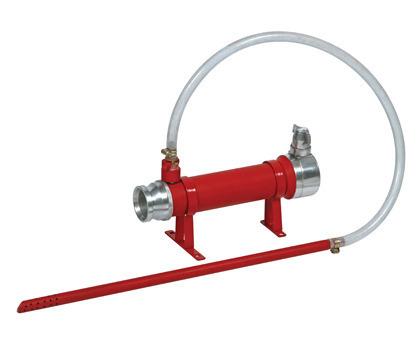

Specifications for SS 63mm Inline Inductor Portable with Pickup Tube
| Design Parameters | |
|---|---|
| Size | 63mm (2 1/2") |
| Inlet | Female Instantaneous |
| Outlet | Male Instantaneous |
| Lugs | Pull push Type, Quick Release Type |
| Weight | 4.7Kg |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Gunmetal or Stainless Steel (SS 304) or Stainless Steel (SS 316) |
| Other Working Parts | Stainless Steel or Stainless Steel (SS 316) |
| Male / Female | MoC Male/Female: Gunmetal or MoC Male/Female: Stainless Steel or MoC Male/Female: SS 316 |
| Pick-up Tube | PVC Braided Pipe |
| Rubber Washer/Ring | Natural Rubber |
| Ventury | Gun Metal |
| Functional Parameters | |
| Flow (in LPM) | 225-250 LPM or 350-450 LPM |
| Mixing Percentage | Mixing percentage is 0% to 6% |
| Inspection Parameters | |
| Test Pressure | 21 Kg/Cm2 |
| Working Pressure | 7kg / cm2 |
| Finish | |
| Other Parts | Painted Yellow/Painted Fire Red |
| General | |
| Brand | DEVRAJ/SAFEWORLD |
| Guarantee (From Manufacturing Defect) | 1 year |
| ISI Marked? | Not Applicable |
| Length | 440mm |
| Uncategorized | |
| Approved | CE Approved |
