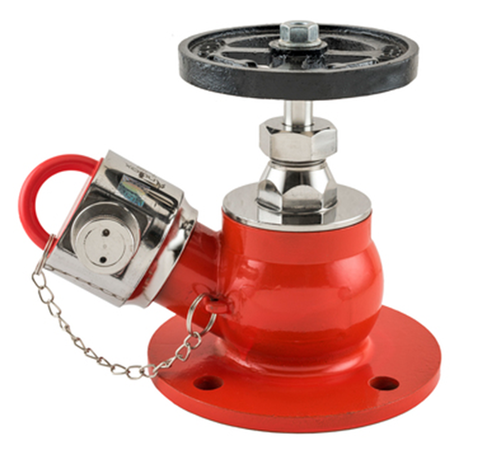

SS 63mm Hydrant Valve (As per IS)

https://safeworld.odoo.com/web/image/product.template/1975/image_1920?unique=6fde97a
(0 review)

Devraj Make Stainless Steel 63mm Hydrant Valve (Oblique Pattern Landing Valve - Single Headed) with Instantaneous Outlet bearing ISI Mark as per IS 5290

45.70 45.7 USD 45.70 VAT Excluded

3,350.00 ₹ VAT Excluded

Price against Inquiry

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Flange PCD
  • Number of Holes in Flange
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Flange OD 200/190mm or 190mm
Flange PCD 160/152mm or 152mm
Design Standard (General Reference) IS 5290 Type A
Size 63mm (2 1/2")
Inlet Flanged
Outlet Female Instantaneous
Number of Holes in Flange 4
Flange ID (Bore Dia) 75mm (3")
MoC (Material of Construction)
MOC - Body/All Parts Stainless Steel (SS 304) or Stainless Steel (SS 316)
MOC Wheel Cast Iron
Spindle Stainless Steel
Male Blank Cap PVC Blank Cap
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 21kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polished
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
