  2. SS 63mm Double Hydrant As Per IS: 5290

SS 63mm Double Hydrant As Per IS: 5290

https://www.esafeworld.com/web/image/product.template/1963/image_1920?unique=a49ca94
(0 review)

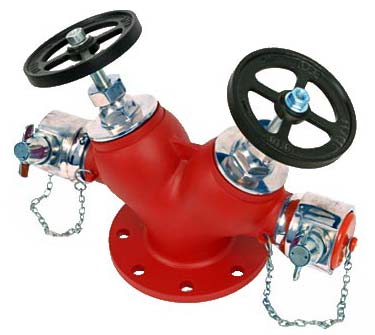

Stainless Steel 63mm Double Controlled Hydrant Valve (Landing Valve) as per IS:5290 Type-B with ISI mark

$ 110.44 110.44 USD $ 110.44 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

($ 110.44 / unit)
  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • Body
  • Rubber Washer/Ring
  • Spring
  • Chain
  • MOC Wheel
  • Blank Cap
  • Spindle
  • Seat Pressure
  • Test Pressure
  • Service Pressure
  • Other Parts
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Flange OD
  • Flange PCD
  • Flange Thickness

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Design Standard (General Reference) IS 5290 Type B
Size 63mm (2 1/2")
Inlet Flanged 100mm
Outlet 63mm Female Inst. Adaptor
Flange OD 220mm
Flange PCD 190mm
Flange Thickness 12mm
MoC (Material of Construction)
MOC - Body/All Parts Stainless Steel
Body Painted Red, Powder Coated Red
Rubber Washer/Ring Natural Rubber
Spring Stainless Steel
Chain GI
MOC Wheel Cast Iron
Blank Cap Male Blank Cap - PVC
Spindle Stainless Steel
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 21 Kg/Cm2
Service Pressure 7 kg/cm2 pressure
Finish
Other Parts Buff Polished
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
