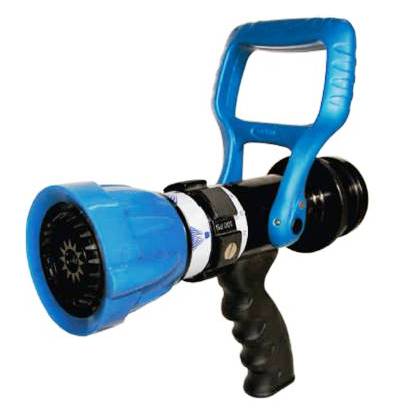

The nozzle shall be designed to provide a constant pressure of 100 PSI over the flow range between 70 – 200 GPM. The nozzle shall be able to allow for Straight Stream to Wide Fog patterns.
The nozzle shall have arrangements to flush without shutting down the flow. The nozzle shall be built from Hard Anodized Aluminium Alloy for excellent corrosion protection.
The nozzle shall have a pistol type grip which should provide excellent grip of the nozzle for fire fighters wearing gloves or using it bare handed. The shall have a Delrin / Non Metallic Ball Valve type mechanism for flow control.
The nozzle shall have a protective bumper at the top along with a Nylon Type teeth ring. The inlet of the nozzle shall be 63 mm British Standard Type Male Inst. Connection and shall have an inlet strainer of Stainless Steel to restrict the debris entering the nozzle flow stream.
The nozzle shall have laser engraved brand name, serial number, model number and QR Code from the OEM. The nozzle shall meet NFPA 1964 Standards and shall be CE certified to EN15182. The weight of the nozzle shall be less than 3 Kgs.

0.00 0.0 USD 0.00 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • MOC - Pistol Grip
  • Working Pressure

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Design Parameters
Inlet 63mm (2.5") Male Instantaneous
Outlet Jet & Spray
MoC (Material of Construction)
MOC - Body/All Parts Aluminium
MOC - Pistol Grip Rubber Moulded
Inspection Parameters
Working Pressure 7 Kg/Cm2
