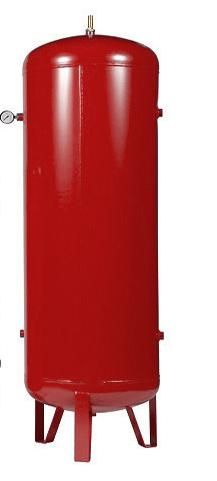

Specifications for MS Air Vessel Tank (Vertical Air Vessel)
| Design Parameters | |
|---|---|
| Diameter | D 200mm or D 250mm or D 300mm or D 350mm |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Mild Steel |
| Inspection Parameters | |
| Test Pressure | 25 kgf/cm2 |
| General | |
| Thickness | Shell Thk 8mm & Dish End Thk 10mm or Shell Thk 6mm & Dish End Thk 8mm or Shell Thk 10mm & Dish End Thk 12mm |
| Uncategorized | |
| Height | H 1200mm or H 1500mm or H 1800mm |
| Make | Febricated |
| Legs Bottom | 75x75x5mm |
