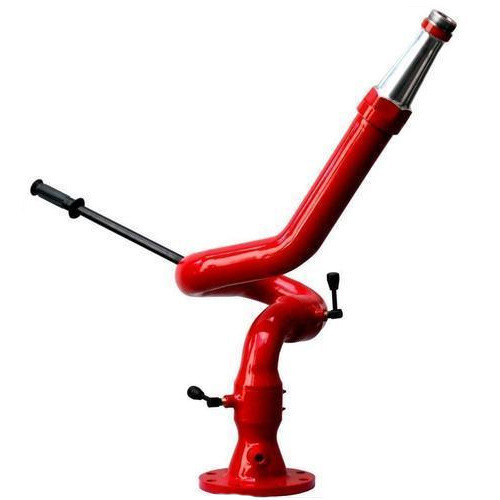

Applicable Code IS : 8442
Size : 63mm (2½"), 75mm (3"), 100mm (4").
MOC :
Pipes : as per IS 1239
Body : MS ERW Pipe / Seamless steel tubes.
Processing : Normal Galvanizing/Hot Dipped Galvanizing.
Swivel Joints : Gunmetal IS:318 LTB2 with S.S. ball bearing and S.S. Locking arrangement.
Inlet : Flanged to IS:1538 / ANSI B
32 mm bore Aluminum alloy Nozzle with male threaded inlet suitable for discharge of 1750 LPM at 7kg/cm2 Pressure.
53m horizontal throw at 30 degree angle in still air.
Maneuverability : 360 degrees in horizontal plane, +85 degrees to -45 degress in vertical traverse.
Finish Body : Fire Red Painted (2 coats).
Nozzle : Jet / Super stream / Water Foam.
Outlet : Male BSP Threaded / Nozzle made of Alu. Alloy / Gunmetal
Test Pressure : 23 Kgf/cm2
One no. flange and a set of nuts and bolts will be supplied along with the monitor in addition.
Optional Features :
Worm and worm gear swivel joints.
Spray/jet nozzles in GM/Al.Alloy/SS.
Jet nozzles in GM/Al.Alloy/SS.
Foam Branchpipe.
Swivel joints in GM/SS.
Trolley mounted.
Barrel outlet threaded or instantaneous female type.
Flange dimension as per requirements.
Guarantee : One year from the date of purchase for any manufacturing defect.
Model | Operating Pressure Range Kg/cm2 | Flow Range lpm | Inlet Flange lpm | Barrel size / Nozzle bore dia NB | Perfomance | |
Flow lpm | Range Mtrs. | |||||
M63 | 6-12 | 1500-2500 | 75/100 | 63/32 | 1750 | 55 |
M75 | 6-12 | 1800-3500 | 100 | 75/38 | 2580 | 62 |
M100 | 7-12 | 2500-5500 | 150 | 100/45 | 3750 | 67 |
*When used with matching jet nozzles at 7 kg/cm2 pressure at the nozzle, at an approximate angle 30 degrees, in still wind condition.
Specifications
| Design Parameters | |
|---|---|
| Flange Dimensions | As Per ANSI: OD:229mm, PCD: 190.5mm, ID: 100mm, 19mm Hole, number of Hole 8 or As per IS: OD: 220mm , PCD: 180mm, ID:100mm, 19mm hole, Number of Hole 8 |
| General | |
|---|---|
| Type of Nozzle | Aluminum Jet Nozzle or Gunmetal Jet Nozzle or Jet & Spray Nozzle or Aluminum Aqua Foam Nozzle or Gunmetal Aqua Foam Nozzle or Without Nozzle |
| Brand | DEVRAJ/SAFEWORLD |
| Guarantee (From Manufacturing Defect) | 1 year |
