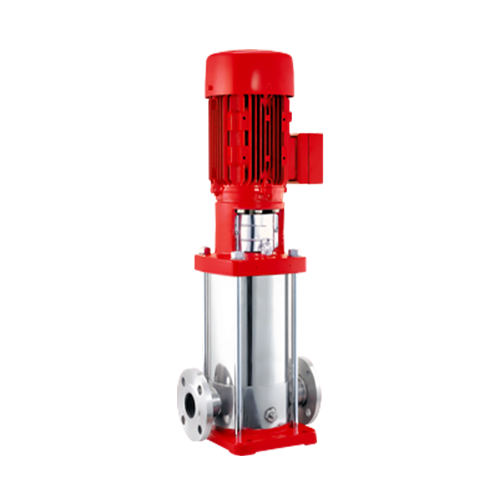

JP-10.8-70-2900 Vertical Electric Motor Driven Jockey Pump having 10.8 M3/Hr Flow at 70m head with 2900 RPM HP 12.5 Motor - KBL Make

JP-10.8-70-2900 Vertical Electric Motor Driven Jockey Pump having 10.8 M3/Hr Flow at 70m head with 2900 RPM HP 12.5 Motor - KBL Make

(0 review)


-MOC: BRONZE
KBL MAKE DB 32/26 - 86 WITH 12.5 HP/2P/B3 Coupled Set

$ 1,009.46 $ 1,009.46 (Tax excluded)
78,650.00 ₹ (Tax excluded)

  • Brand
  • Speed, Rated
  • Flow (in LPM)
  • MOC - Body/All Parts
  • Total Head In 'm'
  • Body
  • Warranty against Manufacturing Defect
  • Enclosure of Motor
  • Rated Voltage of Motor
  • Material selected
  • Viscosity
  • Liquid
  • Temperature
  • Sp.Gravity
  • Pump Type
  • NPSHR in mtrs
  • Pump Efficiency (%)
  • Rec.Motor (KW)
  • Impeller Diameter maximum
  • Impeller Diameter minimum
  • Flow, rated
  • Motor rating
Add to cart
Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Brand: Kirloskar
Speed, Rated: 2900 RPM
Flow (in LPM): 180
MOC - Body/All Parts: Cast Iron
Total Head In 'm': 70
Body: Powder Coated Red
Warranty against Manufacturing Defect: 1 years
Enclosure of Motor: TEFC
Rated Voltage of Motor: 415 V / 50 HZ
Material selected: A MOC - CI 260 (012)/ SS304(250)/SS304(250)/ SS316(251) - For KCIL
Viscosity : 1.00 cSt
Liquid: Water
Temperature: 20.00 deg C
Sp.Gravity: 1
Pump Type: KCIL10-12
NPSHR in mtrs: 2.48 / 0.50 m
Pump Efficiency (%): 69.50 %
Rec.Motor (KW): 4 kw/5.5 HP
Impeller Diameter maximum: 92.30 mm
Impeller Diameter minimum: 92.30 mm
Flow, rated: 10.80 m3/h
Motor rating: 4.00 kW / 5.36 hp

30-day money-back guarantee
Buy now, get in 2 days


Specifications for JP-10.8-70-2900 Vertical Electric Motor Driven Jockey Pump having 10.8 M3/Hr Flow at 70m head with 2900 RPM HP 12.5 Motor - KBL Make

Design Parameters
Viscosity 1.00 cSt
Liquid Water
Temperature 20.00 deg C
Sp.Gravity 1
Pump Type KCIL10-12
NPSHR in mtrs 2.48 / 0.50 m
Pump Efficiency (%) 69.50 %
Rec.Motor (KW) 4 kw/5.5 HP
MoC (Material of Construction)
MOC - Body/All Parts Cast Iron
Functional Parameters
Speed, Rated 2900 RPM
Flow (in LPM) 180
Total Head In 'm' 70
Finish
Body Powder Coated Red
General
Brand Kirloskar
Warranty against Manufacturing Defect 1 years
Prime Mover Parameters
Enclosure of Motor TEFC
Rated Voltage of Motor 415 V / 50 HZ
Uncategorized
Material selected A MOC - CI 260 (012)/ SS304(250)/SS304(250)/ SS316(251) - For KCIL
Impeller Diameter maximum 92.30 mm
Impeller Diameter minimum 92.30 mm
Flow, rated 10.80 m3/h
Motor rating 4.00 kW / 5.36 hp
