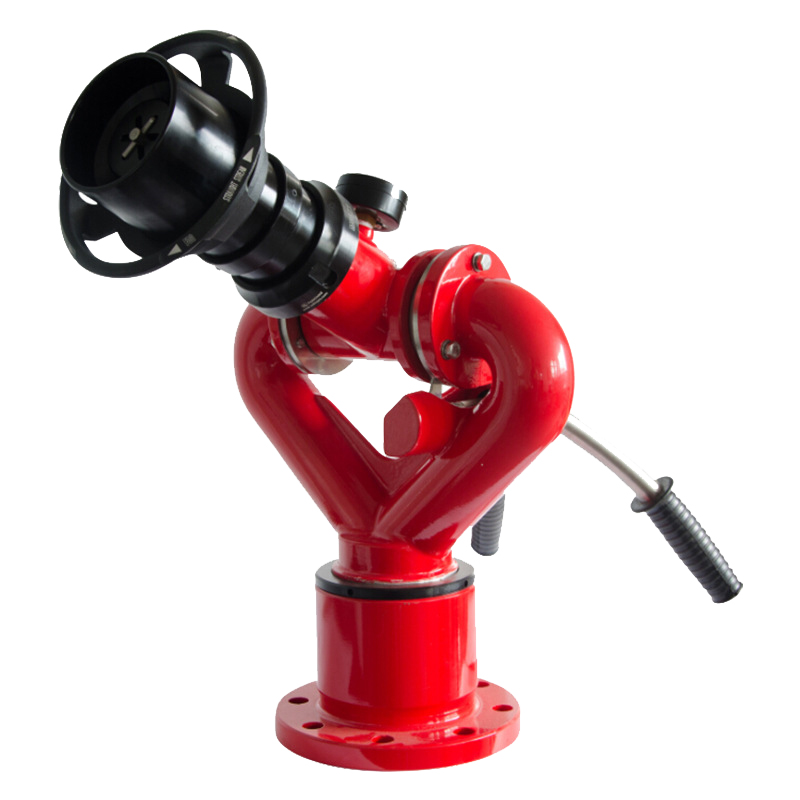

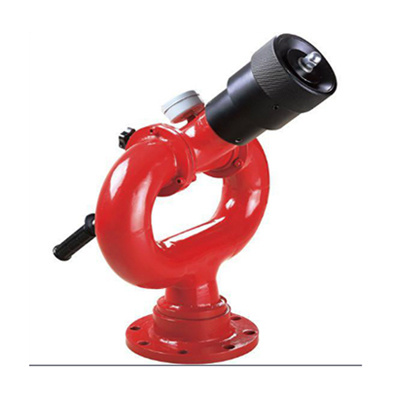

GM 63mm Water Monitor (Fixed - Dual Flow type)

  • Size
  • Flange Dimensions
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • Base Flange
  • Handle
  • Swivel Joint
  • Bends
  • Throw
  • Flow (in LPM)
  • Monitor Rotation
  • Monitor Elevation
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Handle ( Finish )
  • Guarantee (From Manufacturing Defect)
  • Type of Nozzle

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.


GM 63mm Water Monitor (Fixed - Dual Flow type) with Jet & Spray type Nozzle

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days

Specifications for GM 63mm Water Monitor (Fixed - Dual Flow type)

Design Parameters
Size 63mm (2 1/2")
Flange Dimensions As Per IS : OD: 200mm, PCD: 160mm, ID: 75mm, 19mm hole , 4 number of hole
Inlet Flanged - 75/100 NB IS:1538/ ANSI B16.5 150#
Outlet Jet & Spray
MoC (Material of Construction)
MOC - Body/All Parts Body - Gunmetal
Base Flange Carbon (Mild) Steel
Handle Carbon (Mild) Steel
Swivel Joint Gun Metal
Bends Carbon (Mild) Steel
Functional Parameters
Throw 53 Meters
Flow (in LPM) Flow 1750 LPM
Monitor Rotation 360 D
Monitor Elevation 90 Deg. above horizontal & 45 Deg. below horizontal
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polish
Handle ( Finish ) Painted Black
General
Type of Nozzle Aluminum Jet Nozzle or Gunmetal Jet Nozzle or Without Nozzle or Aqua Foam Nozzle made of Aluminium
Guarantee (From Manufacturing Defect) 1 Year
