GM 63mm MI X 100mm FI Controlled Collecting Breech (Bush Type)

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • MOC Wheel
  • Test Pressure
  • Working Pressure
  • Body
  • Wheel
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.

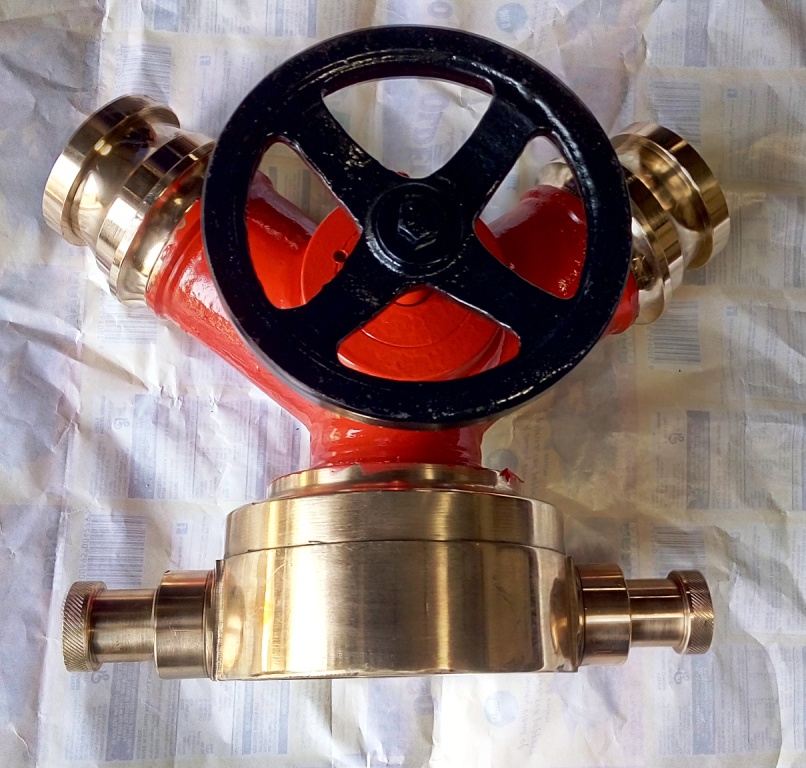

Gunmetal 63mm MI x 100mm Female Instantaneous CONTROLLED Collecting BREECH (Bush Type)

63mm Male Instantaneous 2 Nos. x 100mm Female Instantaneous

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for GM 63mm MI X 100mm FI Controlled Collecting Breech (Bush Type)

Design Parameters
Design Standard (General Reference) IS 5131
Size 63mm (2 1/2") x 100mm (4")
Inlet 63mm Male Instantaneous - 2 Nos.
Outlet 100mm Female Instantaneous
Lugs Pull Push Type (BR)
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Gunmetal
Plunger Brass
MOC Wheel Cast Iron
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Wheel ##Painted black
External Parts Buff Polished
General
Brand DEVRAJ
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
