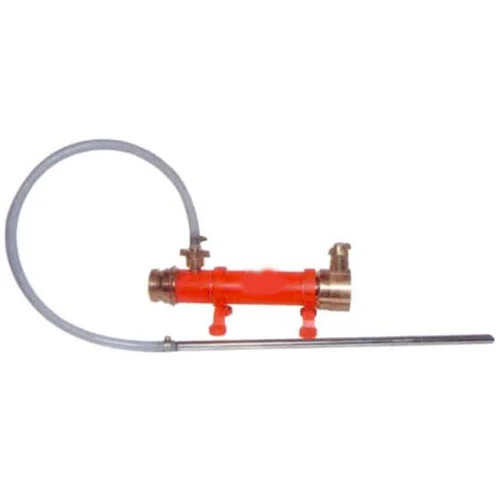

GM 63mm Inline Inductor with Pick-up Tube

GM 63mm Inline Inductor with Pick-up Tube

Price against Inquiry

Size
Inlet
Outlet
Lugs
Locking Arrangement
MOC - Body/All Parts
Ventury
Male / Female
Pick-up Tube
Rubber Washer/Ring
Other Working Parts
Flow (in LPM)
Mixing Percentage
- Mixing percentage is 0% to 6%
Test Pressure
Working Pressure
Other Parts
- Painted (Fire Red)
Brand
Guarantee (From Manufacturing Defect)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Locking Arrangement	without Locking Arrangement or With In-built Ball Valve
Size	63mm (2 1/2")
Inlet	Female Instantaneous
Outlet	Male Instantaneous
Lugs	Quick Release Type (BR)

MoC (Material of Construction)
MOC - Body/All Parts	Body - Gunmetal
Ventury	Gun Metal
Male / Female	MoC Male/Female: Gunmetal
Pick-up Tube	PVC Braided Pipe
Rubber Washer/Ring	Natural Rubber
Other Working Parts	Gunmetal

Functional Parameters
Flow (in LPM)	225-250 LPM or 350-450 LPM
Mixing Percentage	Mixing percentage is 0% to 6%

Inspection Parameters
Test Pressure	21 Kg/Cm2
Working Pressure	7kg / cm2

Finish
Other Parts	Painted (Fire Red)

General
Brand	DEVRAJ/SAFEWORLD
Guarantee (From Manufacturing Defect)	1 year
