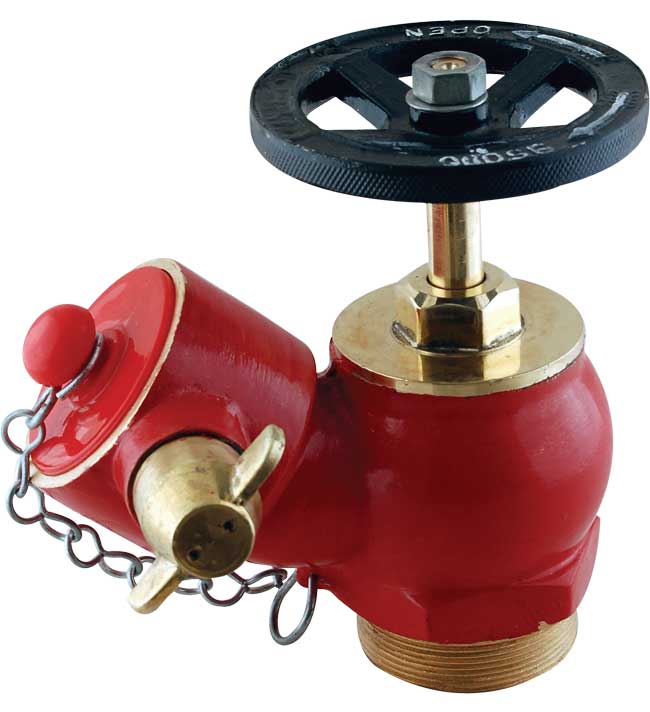

Specifications for GM 63mm Hydrant Valve Oblique Type 63mm MBSP Inlet x 63mm FI with PVC Cap Brass Chain
| Design Parameters | |
|---|---|
| Size | 63mm (2 1/2") |
| Inlet | Screwed |
| Outlet | 63mm Female Inst. Adaptor |
| MoC (Material of Construction) | |
| Blank Cap | PVC or Gunmetal |
| MOC - Body/All Parts | Gunmetal |
| Rubber Washer/Ring | Natural Rubber |
| Spring | Brass |
| Chain | GI |
| MOC Wheel | Cast Iron |
| Spindle | Brass |
| Inspection Parameters | |
| Seat Pressure | 10 Kg/Cm2 |
| Test Pressure | 14 kg/cm2 |
| Working Pressure | 7 Kg/Cm2 |
| Finish | |
| Body | Painted Red |
| Other Parts | Buff Polished |
| Wheel | Painted Black |
| General | |
| Brand | DEVRAJ |
| ISI Marked? | Not Applicable |
| Guarantee (From Manufacturing Defect) | 1 year |
