GM 63mm Hydrant Valve ISI

https://www.esafeworld.com/web/image/product.template/1521/image_1920?unique=7ff8594
(0 review)

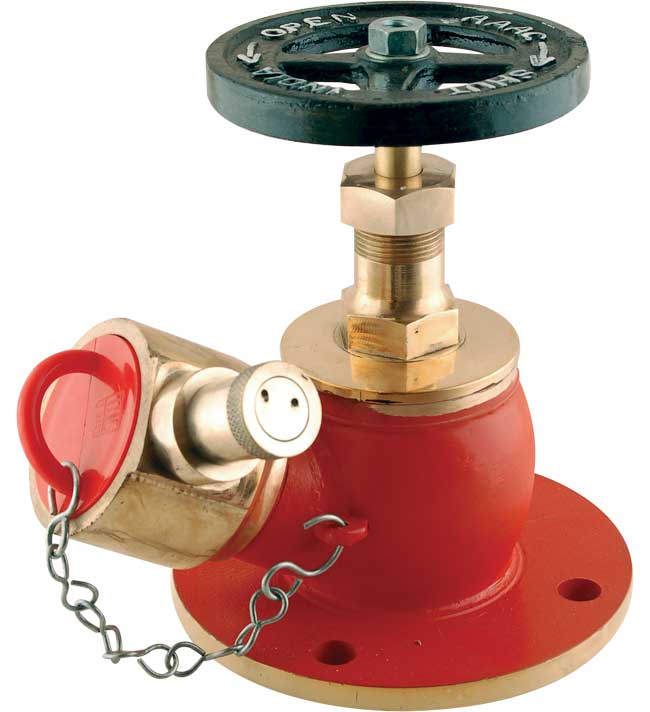

Devraj Make Gunmetal 63mm Hydrant Valve (Oblique Pattern Landing Valve - Single Headed) with Instantaneous Outlet bearing ISI Mark as per IS 5290

Available in the following variants
OD - 200mm, 185mm, 190.5mm
PCD - 160mm, 145mm, 152.4mm
Thickness - 12mm, 18mm

67.33 67.33 USD 67.33 VAT Excluded

5,400.00 ₹ VAT Excluded

Price against Inquiry

(67.33 / unit)
  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Outlet Adaptor
  • Other Working Parts
  • Chain
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Rubber Parts
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We PROVIDE BUYBACK OPTION!

We buyback old hydrant valves as reasonable rates looking at the condition of the valve and components.

Odoo • Text and Image


Specifications

Design Parameters
Design Standard (General Reference) IS 5290 Type A
Size 63mm (2 1/2")
Inlet Flanged
Outlet Female Instantaneous
Flange OD 200/190mm
Flange Thickness 12mm
Flange PCD 160/152mm
Number of Holes in Flange 4
Flange ID (Bore Dia) 75mm (3")
MoC (Material of Construction)
Outlet Adaptor Single Pull Type Lug Adaptor or Double Lug Type Adaptor or Q.R. Type Adaptor
Chain GI or S.S.
Male Blank Cap PVC Blank Cap or Gunmetal Blank Cap or ABS Plastic Blank cap
Rubber Parts Natural Rubber (As per IS) or Neoprene Rubber
MOC - Body/All Parts Brass
Other Working Parts Gunmetal
MOC Wheel Cast Iron
Spindle Brass
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Red
Other Parts Buff Polish
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 2 years
