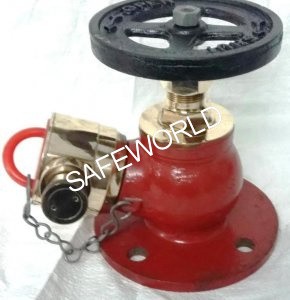

GM 63mm Hydrant Valve Comm

https://www.esafeworld.com/web/image/product.template/1520/image_1920?unique=c6f1dba
(0 review)

57.36 57.36 USD 57.36 VAT Excluded

4,600.00 ₹ VAT Excluded

Price against Inquiry

(57.36 / unit)
  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Flange PCD
  • Number of Holes in Flange
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • MOC Wheel
  • Spindle
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Flange OD 185mm or 165mm
Flange PCD 145mm or 125mm
Size 63mm (2 1/2")
Inlet Flanged
Outlet Female Instantaneous
Number of Holes in Flange 4
Flange ID (Bore Dia) 63mm (2 1/2")
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Brass
MOC Wheel Cast Iron
Spindle Brass
Inspection Parameters
Seat Pressure 10 Kg/Cm2
Test Pressure 14 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Painted Red, Powder Coated Red
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
