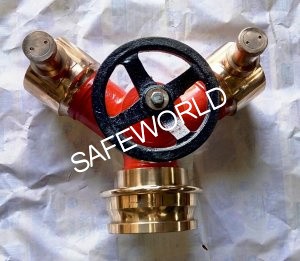

GM 63mm FI x 100mm Male Int. Controlled Dividing Breech (Bush Type)

https://safeworld.odoo.com/web/image/product.template/23950/image_1920?unique=1a8c2bf
(0 review)


GUN METAL CONTROLLED DIVIDING BREECH IS 5131 Type - A (Bush Type)

63mm Female Instantaneous 2 Nos. x 100mm Male Instantaneous

83.94 83.94 USD 83.94 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • MOC Wheel
  • Test Pressure
  • Working Pressure
  • Body
  • Wheel
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Design Standard (General Reference) IS 5131
Size 63mm (2 1/2") x 100mm (4")
Inlet 100mm Male Instantaneous
Outlet Female Instantaneous 63mm x 2 Nos.
Lugs Pull Push Type (BR)
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Gunmetal
Plunger Brass
MOC Wheel Cast Iron
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Wheel ##Painted black
External Parts Buff Polished
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
