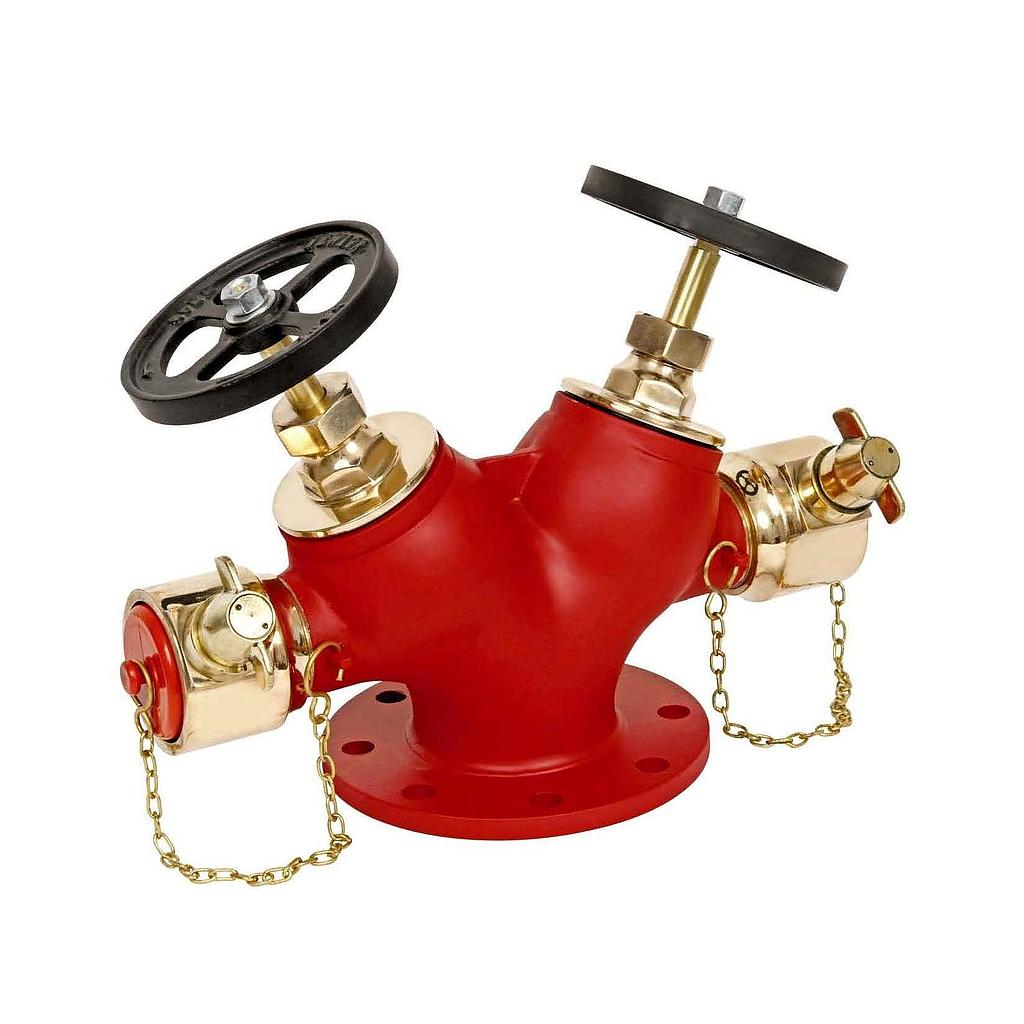

GM 63mm Double Hydrant Valve ISI

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Other Working Parts
  • Chain
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Packing

193.74 193.74 USD 193.74

1.00 ₹

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for GM 63mm Double Hydrant Valve ISI

Design Parameters
Design Standard (General Reference) IS 5290 Type B
Size 63mm (2 1/2")
Inlet Flanged 100mm
Outlet Female Instantaneous
Flange OD 220mm
Flange PCD 180mm
Number of Holes in Flange 8
Hole Diameter / Internal Diameter 19mm
MoC (Material of Construction)
Male Blank Cap PVC Blank Cap or Gunmetal Blank Cap
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Other Working Parts Gunmetal
Chain GI
MOC Wheel Cast Iron
Spindle Brass
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Wheel Painted Black
General
Brand DEVRAJ
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
Uncategorized
Packing With Packing or Without Packing
