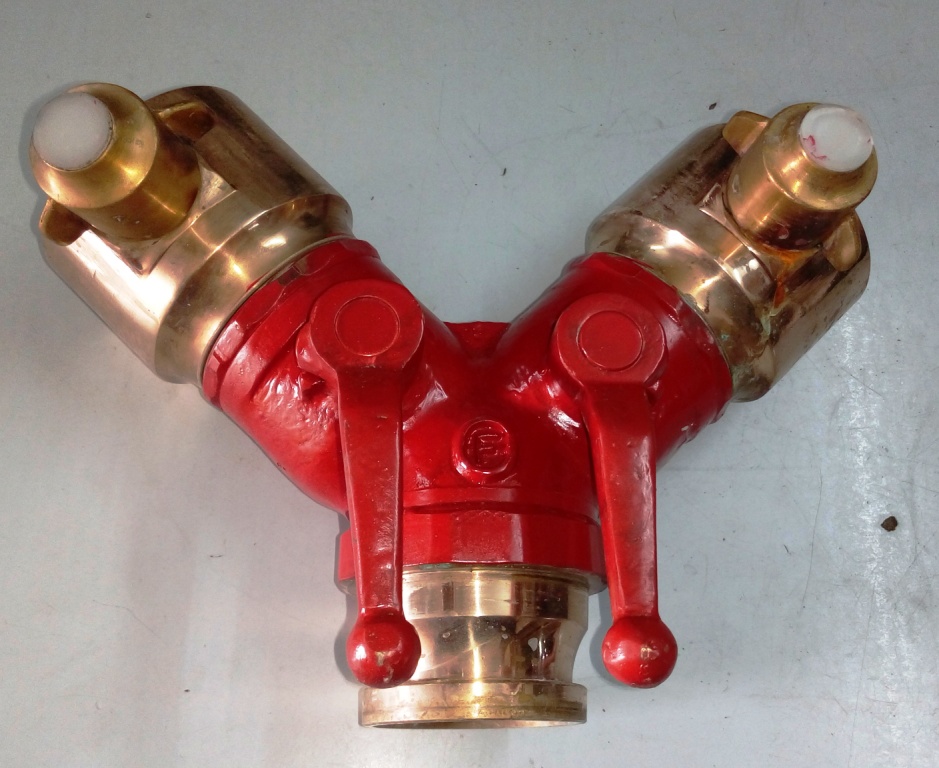

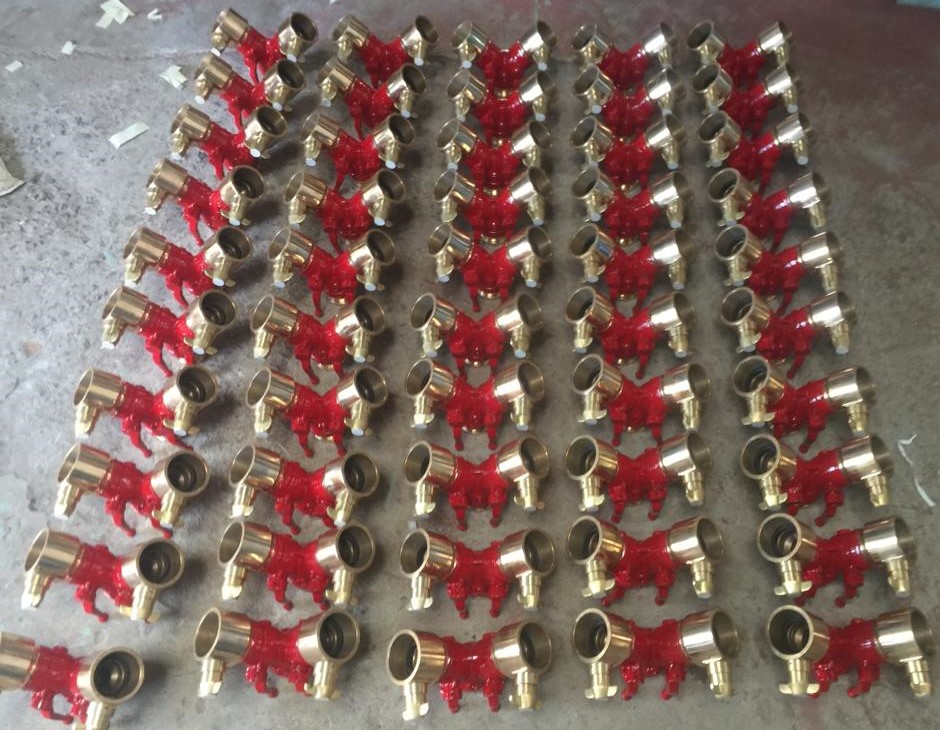

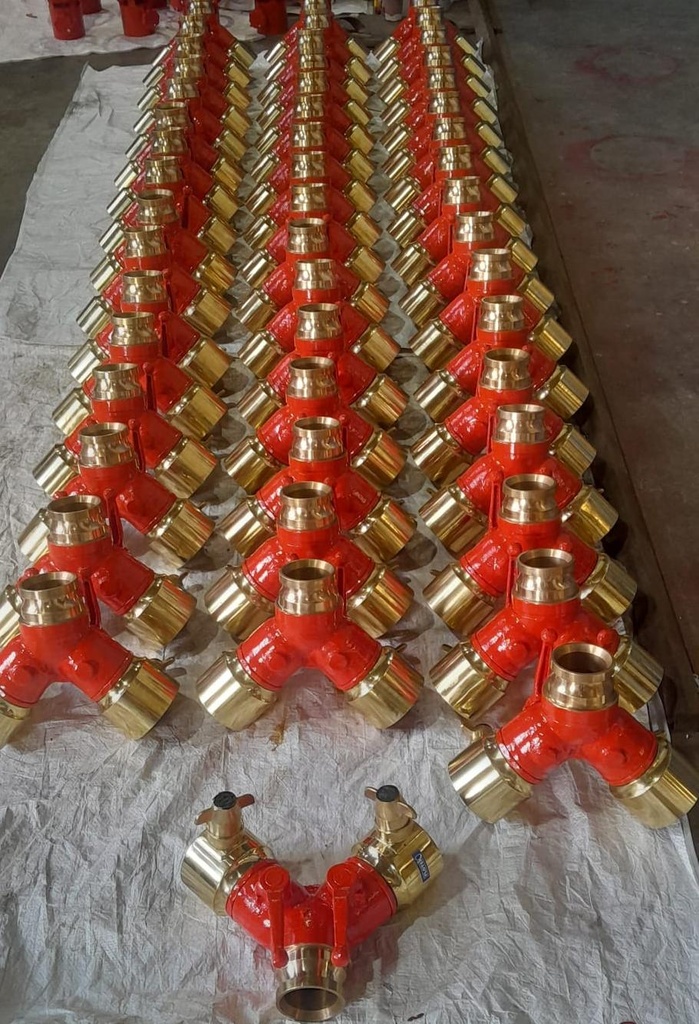

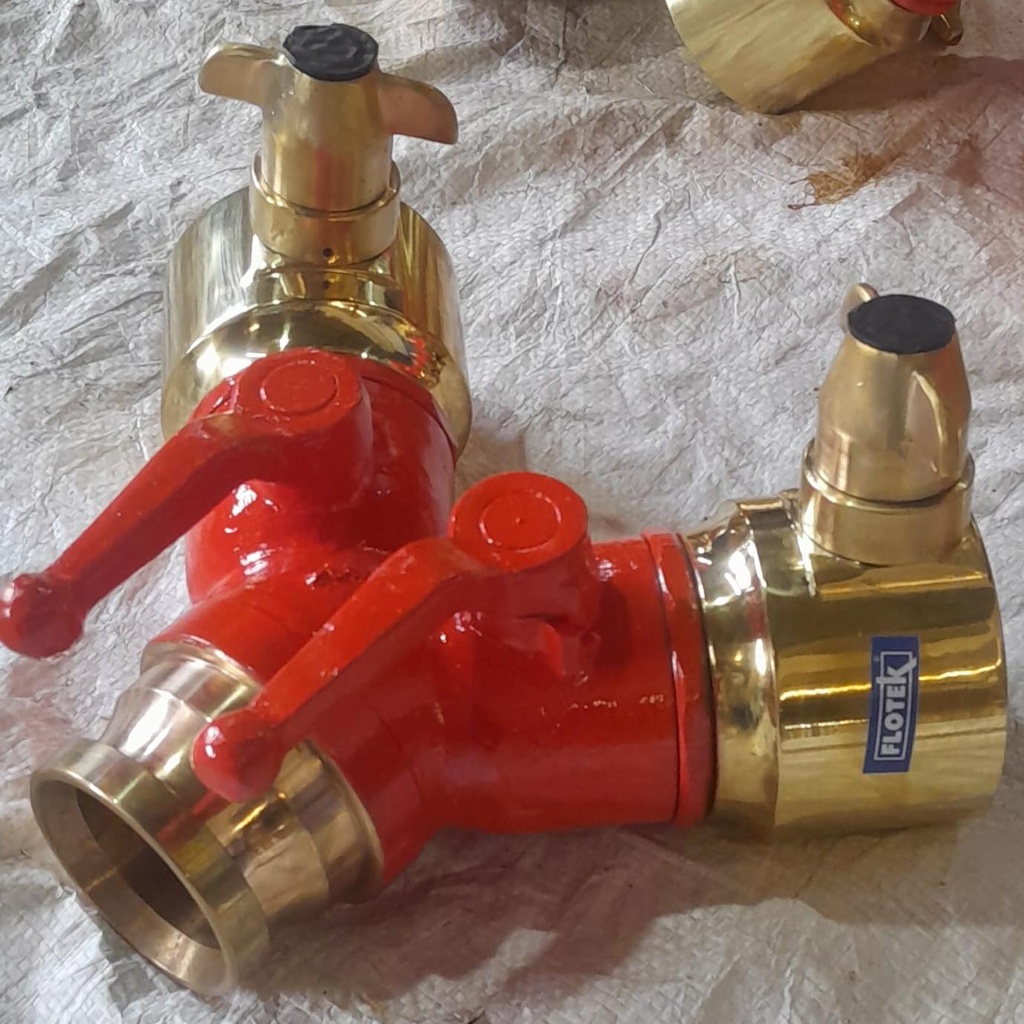

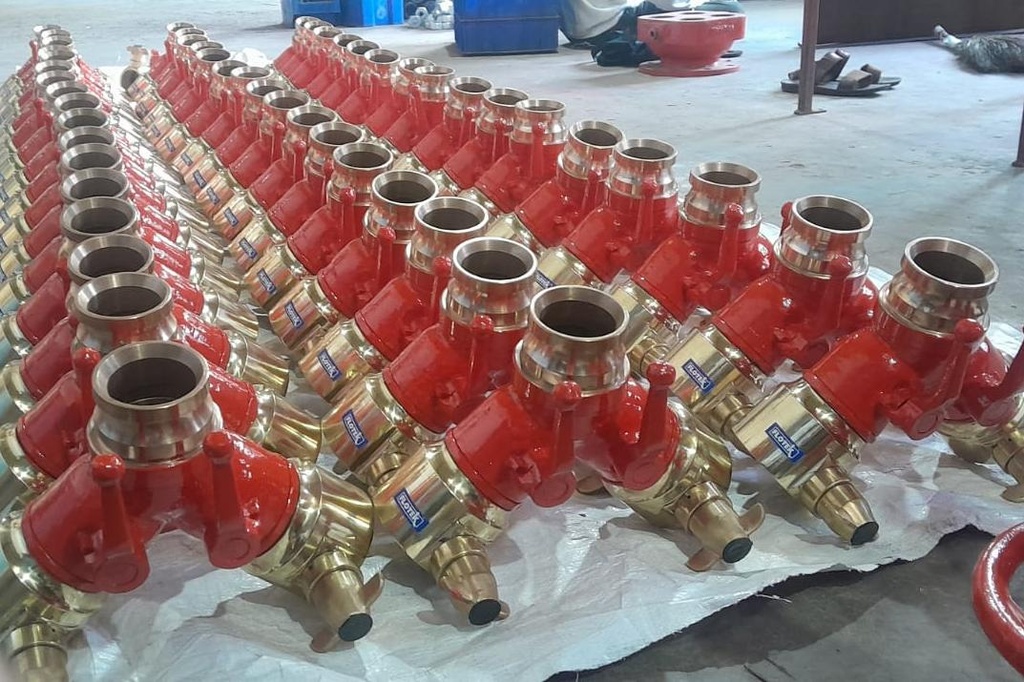

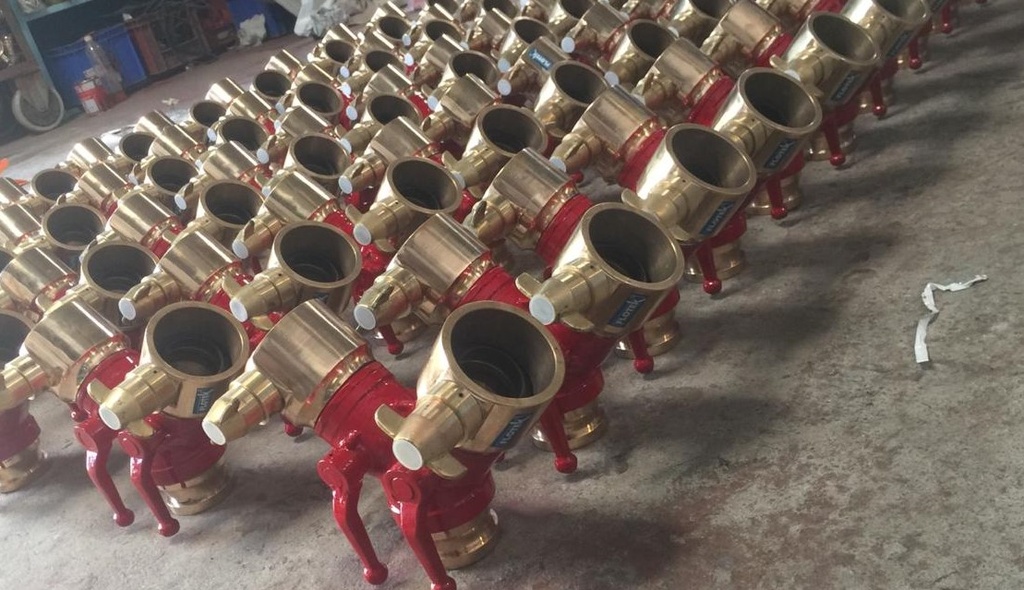

Specifications for GM 63mm Controlled Dividing Breech As Per IS:5131/BS336 Type B (Ball Type)
| Design Parameters | |
|---|---|
| Inlet | Male Instantaneous or Male Instantaneous - 37mm or 50mm Storz connection |
| Outlet | Female Instantaneous or Female Instantaneous - 37mm x 2 Nos. or 50mm Storz connection |
| Design Standard (General Reference) | IS 5131 Type B |
| Size | 63mm (2 1/2") |
| Lugs | Pull push Type, Quick Release Type |
| MoC (Material of Construction) | |
| Male / Female | MoC Male/Female: Gunmetal or MoC Male/Female: Stainless Steel or MoC Male/Female: Aluminium |
| MOC - Body/All Parts | Body - Gunmetal or Body - Aluminium |
| MOC - Body/All Parts | Gunmetal |
| Other Working Parts | Gunmetal |
| Handle | Gunmetal |
| Inspection Parameters | |
| Test Pressure | 21 Kg/Cm2 |
| Working Pressure | 12 Kg/Cm2 |
| Finish | |
| Body | Painted Red |
| Handle ( Finish ) | Painted Black |
| External Parts | Buff Polished |
| General | |
| Brand | DEVRAJ/SAFEWORLD |
| Guarantee (From Manufacturing Defect) | 1 year |
