GM 50MM Hydrant Valve Right Angle type

https://www.esafeworld.com/web/image/product.template/23504/image_1920?unique=e1bc60e
(0 review)

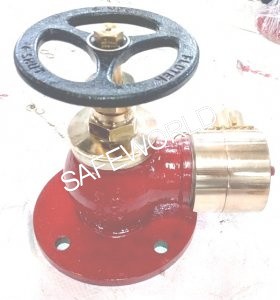

GM 50mm Right Angle Hydrant Valve

0.00 0.0 USD 0.00 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Lugs
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Outlet Adaptor
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • Chain
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Size 50mm (2")
Inlet Flanged
Outlet Female Instantaneous
Flange OD 160
Lugs Pull Push Type (BR)
Flange Thickness 11mm
Flange PCD 110mm
Number of Holes in Flange 4
Hole Diameter / Internal Diameter 16mm
Flange ID (Bore Dia) 50mm (2")
MoC (Material of Construction)
Outlet Adaptor Single Pull Type Lug Adaptor or Double Lug Type Adaptor
Male Blank Cap PVC Blank Cap or Gunmetal Blank Cap
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Brass
Other Working Parts Gunmetal
Plunger Brass
Chain GI
MOC Wheel Cast Iron
Spindle Brass
Inspection Parameters
Seat Pressure 14kg/cm2
Test Pressure 14 kg/cm
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polished
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
Guarantee (From Manufacturing Defect) 1 year
