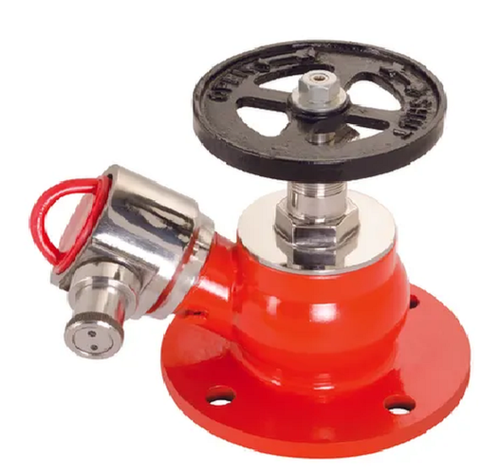

GM 50mm Hydrant Valve (Oblique Pattern)

https://safeworld.odoo.com/web/image/product.template/23867/image_1920?unique=4b1a5f1
(0 review)


Devraj Make Gun Metal 50mm Hydrant Valve (Oblique Pattern Landing Valve - Single Headed) with Instantaneous Outlet

53.08 53.08 USD 53.08 VAT Excluded

4,200.00 ₹ VAT Excluded

Price against Inquiry

  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Lugs
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Size 50 mm (2")
Inlet Flanged
Outlet Female Instantaneous
Flange OD 160mm
Lugs Pull Push Type (BR)
Flange Thickness 11mm
Flange PCD 110mm
Number of Holes in Flange 4
Hole Diameter / Internal Diameter 16mm
Flange ID (Bore Dia) 50mm (2")
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Gunmetal
Plunger Brass
MOC Wheel Cast Iron
Spindle Brass
Male Blank Cap PVC Blank Cap
Inspection Parameters
Test Pressure 10 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polish
Wheel ##Painted black
General
Brand DEVRAJ/SAFEWORLD
Guarantee (From Manufacturing Defect) 1 year
