GM 37mm Controlled Dividing Breech IS 5131( Ball Type )

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Handle
  • Plunger
  • Test Pressure
  • Working Pressure
  • Body
  • Handle ( Finish )
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.

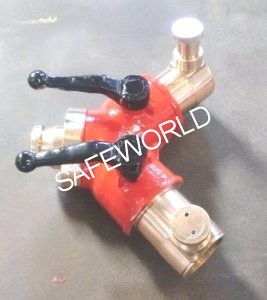

GUN METAL 37mm CONTROLLED DIVIDING BREECH IS 5131 Type - B (Ball Type)

GM 37mm Controlled Dividing Breech As Per IS:5131 Type B (Ball Type)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for GM 37mm Controlled Dividing Breech IS 5131( Ball Type )

Design Parameters
Design Standard (General Reference) IS 5131
Size 37 mm (1 1/2")
Inlet male Instantaneous
Outlet Female Instantaneous
Lugs Pull Push Type (BR)
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Gunmetal
Handle Gunmetal
Plunger Brass
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Painted Red
Handle ( Finish ) Painted Black
External Parts Buff Polished
General
Brand DEVRAJ
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
