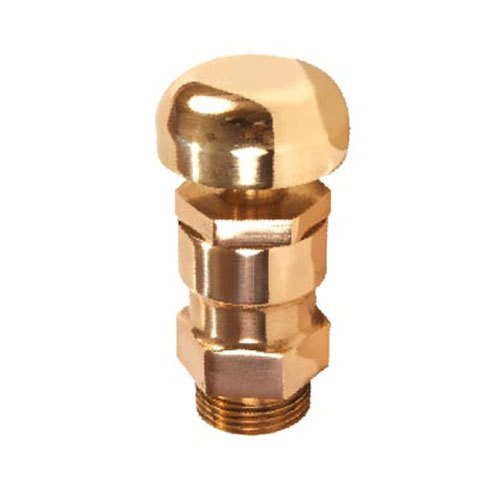

Specifications for GM 25mm Air Release Valve (M)
| Design Parameters | |
|---|---|
| Operating Temperature | Normal Room Temperature or Upto 170 Degree C Temperature |
| Inlet Size | Inlet Size: 25mm (1") or Inlet Size: 20mm (3/4") or Inlet Size: 12mm (1/2") |
| Locking Arrangement | without Locking Arrangement or With In-built Ball Valve |
| Size | 25mm (1") |
| Inlet | Male BSP Threads |
| Outlet | Air Release arrangement |
| Ball | Rubber coated Cork |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Gunmetal |
| MOC - Air Vent | Gunmetal |
| Inspection Parameters | |
| Test Pressure | 14 kg/cm2 |
| Working Pressure | 7 Kg/Cm2 |
| Finish | |
| Body | Buff Polished |
| General | |
| Brand | DEVRAJ |
| Guarantee (From Manufacturing Defect) | 1 year |
