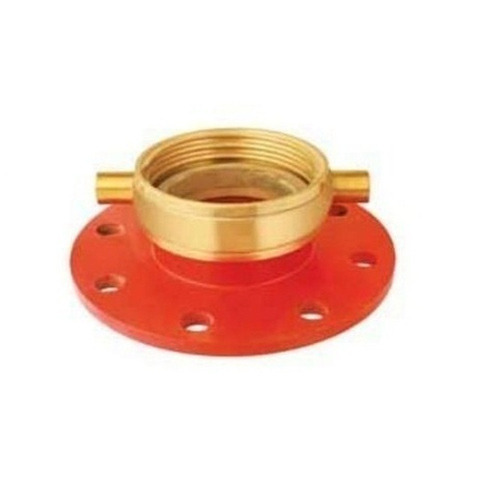

GM 100mm Suction Female (FRT) x CI 100mm Flange (Draw Out Connection) (M)

  • Size
  • Inlet
  • Flange OD
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Base Flange
  • Body
  • Brand
  • Guarantee (From Manufacturing Defect)

41.21 41.21 USD 41.21

2,700.00 ₹

This combination does not exist.


Size: 100mm, Flange : OD: 220mm , PCD : 180mm, 8 Holes of 19mm Dia, Thickness : 12mm

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for GM 100mm Suction Female (FRT) x CI 100mm Flange (Draw Out Connection) (M)

Design Parameters
Size 100mm (4")
Inlet Flanged
Flange OD 220mm
Flange Thickness 12mm
Flange PCD 180 mm
Number of Holes in Flange 8
Hole Diameter / Internal Diameter 19mm
Flange ID (Bore Dia) 100mm
MoC (Material of Construction)
Base Flange Cast Iron, Carbon (Mild) Steel or Gun Metal
MOC - Body/All Parts Gunmetal
Finish
Body Buff Polished
General
Brand DEVRAJ
Guarantee (From Manufacturing Defect) 1 year
