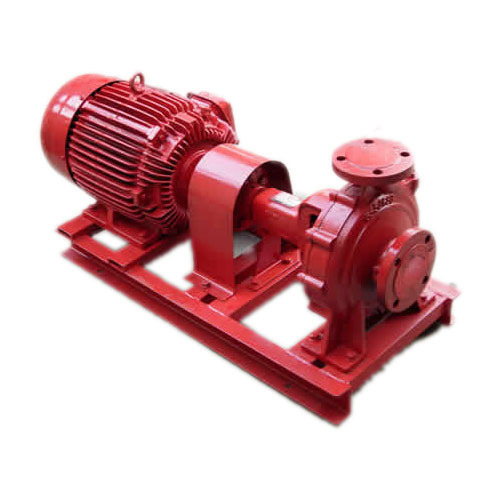

Specifications for EP-171-70-2900 Electric Motor Driven Pump having 171 M3/Hr Flow at 70m head with 2900 RPM Motor KIRLOSKAR Make
| Design Parameters | |
|---|---|
| Liquid | Water |
| Temperature | Ambient |
| Sp.Gravity | 1 |
| Pump Type | DB 100/26+75KC2-100 hp |
| RPM | 2900 |
| NPSHR in mtrs | 5.39 |
| Pump Efficiency (%) | 77% |
| BKW Duty | 42.49 |
| Rec.Motor (KW) | 50/75 |
| Suction Size in mm | 100 |
| Discharge Size in mm | 80 |
| Bearing / Lubrication | Ball / Grease |
| Impeller Dia.In mm | 245 |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Cast Iron |
| MOC - Impeller | Bronze |
| MOC - Shaft | C - 40 |
| MOC - Casing | CI |
| MOC - Wearing / Casing | Bronze |
| MOC - Shaft Sleeve | Bronze |
| Functional Parameters | |
| Flow (in LPM) | 2850 LPM (171 M3/Hr) |
| Total Head In 'm' | 70 |
| Finish | |
| Body | Powder Coated Red |
| General | |
| Brand | Kirloskar |
| Guarantee (From Manufacturing Defect) | 1 year |
| Prime Mover Parameters | |
| Type of Motor | SQ.CAGE |
| Enclosure of Motor | TEFC |
| Speed of Motor (RPM) | 2900 |
| Rated Voltage of Motor | 415 V / 50 HZ |
