622E-2

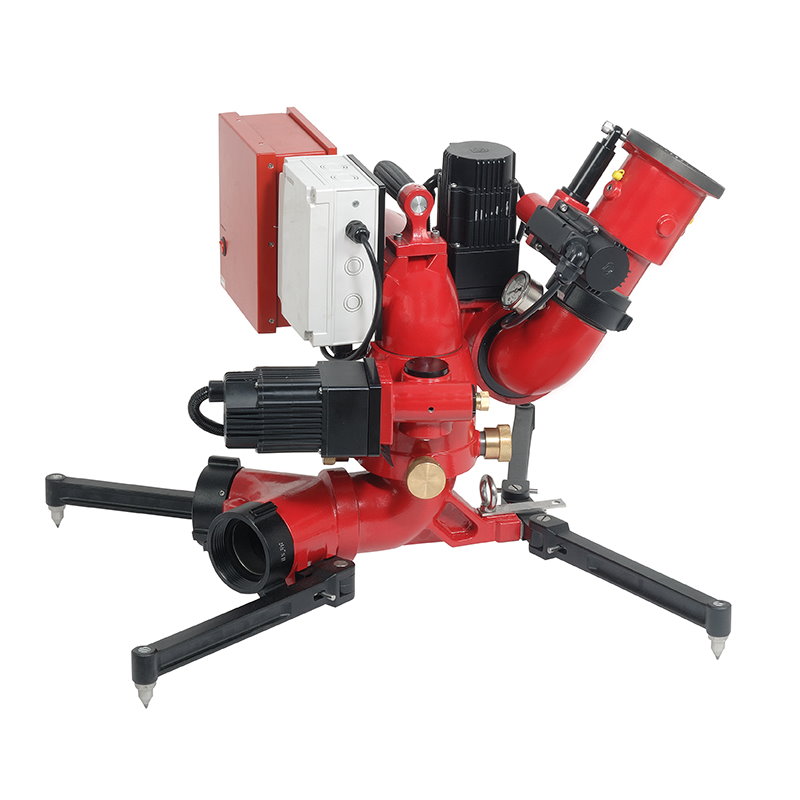

Dual-Purpose Remote Control Ground Monitor
Features
  • Technologically advanced, remote control portable or deck monitor

  • Comes with Style 817E Electric Monitor Nozzle, wireless transmitter, battery recharger and canvas bag for detachable folding legs
  • Full 3" waterway for flow rate of up to 800 GPM (3030 LPM), subject to selection of model
  • 180˚ rotation
  • Vertical travel of 63˚ from 12˚ to 75˚ above
  • Compact folding base can be stored in any truck compartment or pre-connected in the hose bed
  • Carbide-tipped spikes for extended resistance to wear
  • Large handle for excellent portability
  • Fully enclosed worm gear is protected from the elements
  • Brushless electric motor designed to eliminate sparks and reduce risk of ignition
  • Automatic power off function during inactivity for enhanced performance and safety
  • Programmable automatic oscillation
  • Standard 24V with AC-110V to 220V power supply
  • Compatible with a wide range of Protek nozzles and accessories
Specifications
Style: 622E-2
Product Name: Dual-Purpose Remote Control Ground Monitor
Flow Rate: 800 GPM (3030 LPM)
Inlet: 2-1/2" (x2) (65 mm)
Outlet: 2-1/2" (65 mm)
Control: Electric
Vertical Travel: 63° from 12° to 75° above
Rotational Travel: 180°
Material: Alloy
Finish: Red Powder Coating
Weight: 59.5 lbs (27 kg)
Compatible Products: 119, 120, 190, 622 Monitor Base, 622 Monitor Liftoff, 656, 822, 823, 835, 847, 887, 888
Download
953.7KB

Specifications for Dual-Purpose Remote Control Ground Monitors - PROTEK

Design Parameters
Inlet 2-1/2" (x2) (65 mm)
Outlet 2-1/2" (65 mm)
Weight 59.5 lbs (27 kg)
MoC (Material of Construction)
Material Alloy
Functional Parameters
Control Electric
Inspection Parameters
Flow Rate 800 GPM (3030 LPM)
Finish
Body Powder Coated Red
General
Brand Protek
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
Style 622E-2
