Specifications
| Design Parameters | |
|---|---|
| Viscosity | 1.00 cSt |
| Liquid | Water |
| Temperature | 20.00 deg C |

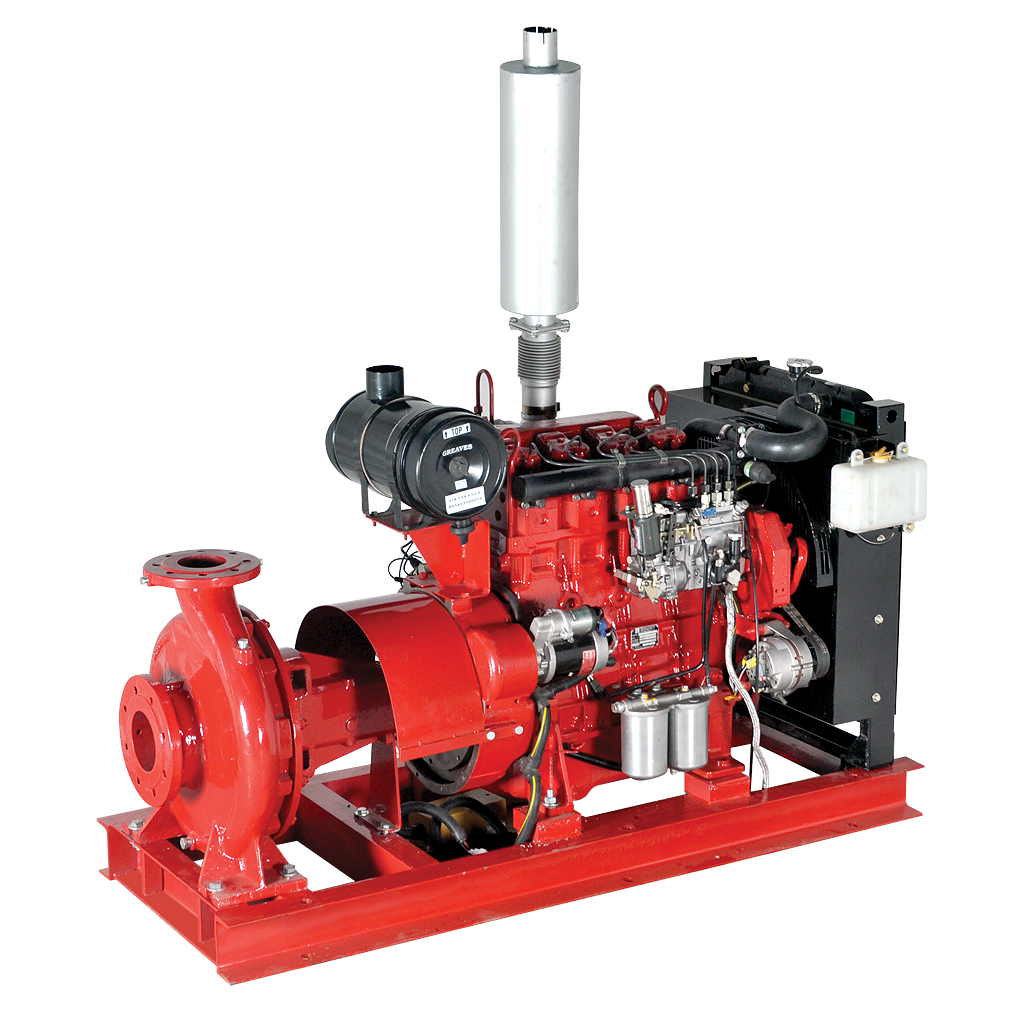

| Pump Type | KFE-E1422R-G02 |
| NPSHR in mtrs | 4.49 / 0.50 m |
| Pump Efficiency (%) | 82.92 % |
| MoC (Material of Construction) | |
|---|---|
| MOC - Body/All Parts | Body - Cast Iron |
| Material | 02 MOC-CI260(012)/BR LTB2(110)/40C8(053) |
| Head | 56 to 145 m |
| MOC - Impeller | Bronze |
| MOC - Shaft | CS/SS |
| Functional Parameters | |
|---|---|
| Speed, Rated | 2300 rpm |
| General | |
|---|---|
| Warranty against Manufacturing Defect | 1 years |
| Brand | Kirloskar |
| Uncategorized | |
|---|---|
| Impeller Diameter maximum | 329 mm |
| Impeller Diameter minimum | 255 mm |
| Shaft sealing | Gland packed / Mechanical seal |
| Speed range | 1500 to 3000 rpm |
| Flow, rated | 273.0 m3/h |
| Fluid density | 0.998 kg/dm3 |
