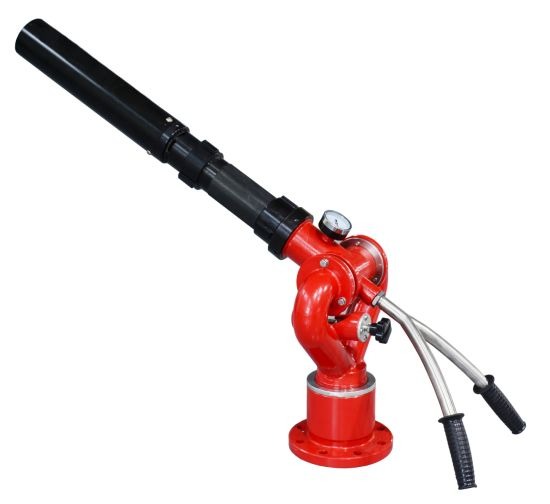

DCP Monitor

https://safeworld.odoo.com/web/image/product.template/29269/image_1920?unique=da4e096
(0 review)

789.73 789.73 USD 789.73 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

  • Size
  • Flange Dimensions
  • Spray Angle
  • Inlet
  • Base Flange
  • Handle
  • Swivel Joint
  • Operation
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Handle ( Finish )
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)
  • Discharge of Monitor at 14 kg/Cm2
  • Horizontal Throw at an angle of 45°
  • vertical throw at 30°

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Size 63mm (2 1/2")
Flange Dimensions As Per IS : OD: 200mm, PCD: 160mm, ID: 75mm, 19mm hole , 4 number of hole
Spray Angle 360°
Inlet Flanged - 150 NB IS:1538/ ANSI B16.5 150#
MoC (Material of Construction)
Base Flange Carbon (Mild) Steel
Handle Carbon (Mild) Steel
Swivel Joint Gun Metal
Functional Parameters
Operation Pneumatic through Nitrogen Gas
Inspection Parameters
Test Pressure 15 /25/40 Kg/Sec
Working Pressure 14 kg/Cm2
Finish
Body Powder Coated Red
Other Parts Buff Polish
Handle ( Finish ) Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Yes
Guarantee (From Manufacturing Defect) 1 year
Uncategorized
Discharge of Monitor at 14 kg/Cm2 40kg/sec
Horizontal Throw at an angle of 45° 50 Meters Minimum
vertical throw at 30° 30 Meters Minimum
