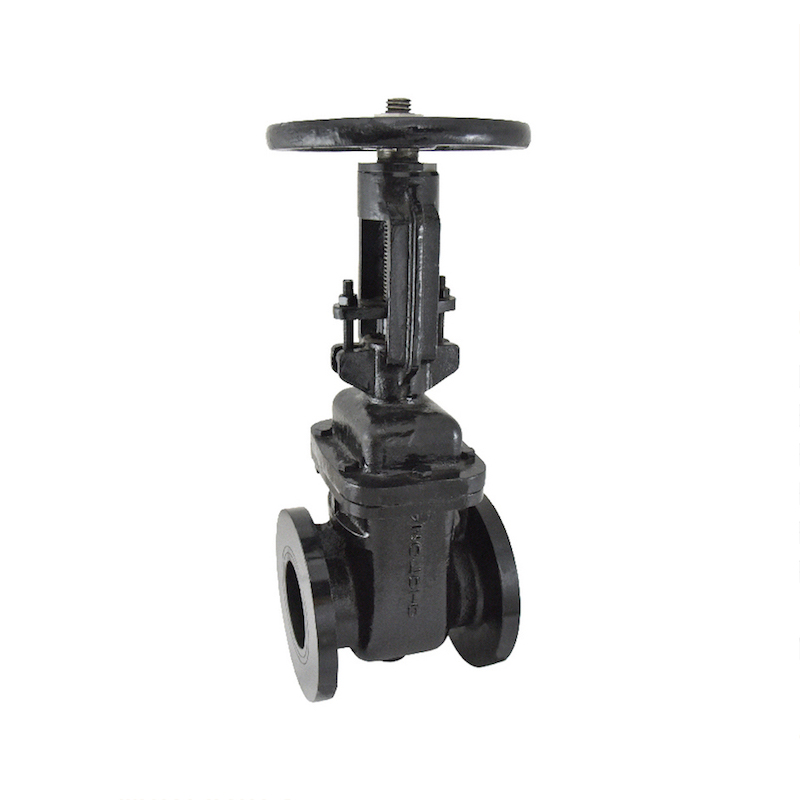

CI Sluice Valve PN-10 - Rising Spindle - Zoloto Make
- Design Reference Standard IS 14846
- Bolted Bonnet, Outside Screw, Yoke Type, Rising Spindle, Solid Wedge
- Rigid and Sturdy design.
- Hand Wheel Operated.
- Flanged ends to IS 1538.
- Provision of Re-Packing under pressure.
- Maximum Working Temperature : 45 C
Suitable for - Water
Specifications
| Design Parameters | |
|---|---|
| Isolation Valves Size | 50mm or 65mm or 80mm or 100mm or 125mm or 150mm or 200mm or 250mm or 300mm |
| Design Standard (General Reference) | IS 14846 |
| Pressure Rating | PN 10 |
| MoC (Material of Construction) | |
|---|---|
| MOC - Body/All Parts | Body - Cast Iron |
| Sleeve | S.G Iron |
| MOC Wheel | Cast Iron |
| MOC - Shaft Sleeve | SG Iron |
| Gasket | Rubber |
| Gland Packing | Hemp & Jute |
| Seat Ring | Bronze |
| Wedge | Cast Iron |
| Bonnet | Cast Iron |
| Stem | Stainless Steel |
| Gland Flange | Cast Iron |
| Handwheel | Cast Iron |
| Washer | Carbon Steel |
| Sleeve Nut | Stainless Steel |
| Handwheel Nut | Stainless Steel |
| Back Seat Bush | Bronze |
| Inspection Parameters | |
|---|---|
| Seat Pressure | 10 Kg/Cm2 |
| Test Pressure | 15 Kg/Cm2 |
| General | |
|---|---|
| Brand | Zoloto |
| Uncategorized | |
|---|---|
| Type | Rising |
