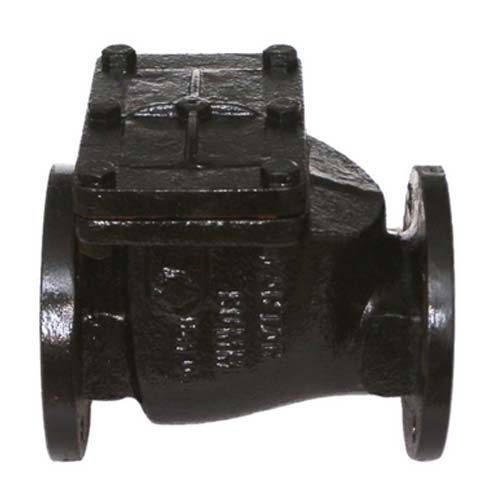

CI NRV Flanged PN16 - KARTAR

https://safeworld.odoo.com/web/image/product.template/21091/image_1920?unique=e7e9536
(0 review)

41.20 41.2 USD 41.20 VAT Excluded

0.00 ₹ VAT Excluded

Price against Inquiry

  • Pressure Rating
  • Isolation Valves Size
  • Brand
  • ISI Marked?

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Body Material

Cast Iron

Usage/Application

Water,Oil

Brand

Kartar

Finishing

Color Coated

Color

Black



We are among the reputed organizations, deeply engaged in offering an optimum quality range of Cast Iron Non Return Valve.



Features:

  • Self operative swing type design

  • Flanged ends

  • Designed to allow maximum flow of water

  • Available in PN10 & PN16

  • ISI Marked as per IS:5312

  • Bye pass arrangement can be provided



Working & Test pressure:

  • Type of Valve – PN 0.6, PN 1.0, PN 1.6

  • Hydrostatic Test (Mpa)

  • Body – 0.9, 1.5, 2.4

  • Shell – 0.6, 1.0, 1.6

  • Note : The valves can also be made in PN 1.6 & 1.0 on request

  • K-514 In PN 10 pressure and with Rubber Seating.

  • K-515 In PN 10 pressure and with GM Seating.

  • K-516 In PN 16 pressure and with Rubber Seating.

  • K-517 In PN 16 pressure and with GM Seating


Composition:

S.No.

Components

Material

1

Body, Cover, Hinge, Door, Door Face Disc

Cast Iron, SG Iron

2

Hinge Pin

High Tensile Brass, Stainless Steel

3

Body Face Ring

Leaded Tin Bronze (Gun Metal), S.S.

4

Door face

Leaded Tin Bronze, Natural Rubber

5

Boltings

Carbon Steel

6

Gaskets

Rubber, CAF.



Dimensions:

Size (mm)

A Length over Flanges

Size of Bye Pass Valve

PN Std. Pressure Rating

50

200

10

1.6

65

240

10

1.6

80

260

10

1.6

100

300

10

1.6

125

350

15

1.6

150

400

15

1

200

500

25

1

250

600

25

1

300

700

40

1

350

800

40

0.6

400

900

40

0.6

450

1000

50

0.6


Body Material

Cast Iron

Usage/Application

Water,Oil

Brand

Kartar

Finishing

Color Coated

Color

Black



We are among the reputed organizations, deeply engaged in offering an optimum quality range of Cast Iron Non Return Valve.

Features:

  • Self operative swing type design

  • Flanged ends

  • Designed to allow maximum flow of water

  • Available in PN10 & PN16

  • ISI Marked as per IS:5312

  • Bye pass arrangement can be provided

Working & Test pressure:

  • Type of Valve – PN 0.6, PN 1.0, PN 1.6

  • Hydrostatic Test (Mpa)

  • Body – 0.9, 1.5, 2.4

  • Shell – 0.6, 1.0, 1.6

  • Note : The valves can also be made in PN 1.6 & 1.0 on request

  • K-514 In PN 10 pressure and with Rubber Seating.

  • K-515 In PN 10 pressure and with GM Seating.

  • K-516 In PN 16 pressure and with Rubber Seating.

  • K-517 In PN 16 pressure and with GM Seating

 Composition:

S.No.

Components

Material

1

Body, Cover, Hinge, Door, Door Face Disc

Cast Iron, SG Iron

2

Hinge Pin

High Tensile Brass, Stainless Steel

3

Body Face Ring

Leaded Tin Bronze (Gun Metal), S.S.

4

Door face

Leaded Tin Bronze, Natural Rubber

5

Boltings

Carbon Steel

6

Gaskets

Rubber, CAF.



Dimensions:

Size (mm)

A Length over Flanges

Size of Bye Pass Valve

PN Std. Pressure Rating

50

200

10

1.6

65

240

10

1.6

80

260

10

1.6

100

300

10

1.6

125

350

15

1.6

150

400

15

1

200

500

25

1

250

600

25

1

300

700

40

1

350

800

40

0.6

400

900

40

0.6

450

1000

50

0.6


Specifications

Design Parameters
Isolation Valves Size 50mm or 65mm or 80mm or 100mm or 125mm or 150mm or 200mm or 250mm or 300mm or 350mm or 400mm
Pressure Rating PN 16
General
Brand Kartar
ISI Marked? Yes
