CI 150MM 4 WAY FIRE BRIGADE INLET VALVE (M)

  • Inlet
  • Outlet
  • Flange OD
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Non Return Valve
  • Chain
  • Blank Cap
  • Test Pressure
  • Working Pressure
  • Body
  • External Parts
  • Brand
  • Guarantee (From Manufacturing Defect)
  • Male Connection

$ 69.01 69.01 USD $ 69.01

1.00 ₹

This combination does not exist.

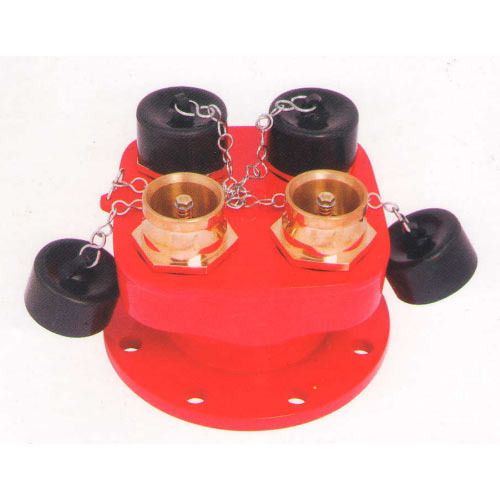

CI 150mm 4 Way Fire Brigade Inlet Valve with GM NRV and PVC Female Blank Cap & Chain

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

30-day money-back guarantee
Buy now, get in 2 days


Specifications for CI 150MM 4 WAY FIRE BRIGADE INLET VALVE (M)

Design Parameters
Inlet Male Instantaneous
Outlet 144 mm NB Flanged
Flange OD 285 mm
Flange Thickness 14mm
Flange PCD 240 mm
Number of Holes in Flange 8
Hole Diameter / Internal Diameter 23 mm
Flange ID (Bore Dia) 144 mm
MoC (Material of Construction)
Non Return Valve NRV - GM or NRV - SS or NRV-AL or NRV-Brass
Blank Cap Without Female Blank Cap or Female Blank Cap - PVC or Female Blank Cap - Rubber
MOC - Body/All Parts Cast Iron
Chain GI
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7kg / cm2
Finish
Body Powder Coated Red
External Parts Buff Polished
General
Male Connection With Valve or Without Valve
Brand DEVRAJ
Guarantee (From Manufacturing Defect) 1 year
