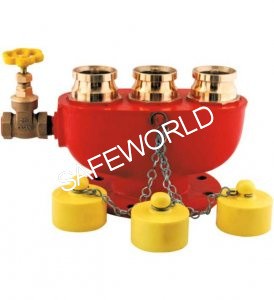

CI 100mm 3 Way Fire Brigade Inlet Valve

  • Inlet
  • Outlet
  • Flange OD
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Non Return Valve
  • Chain
  • Blank Cap
  • Test Pressure
  • Working Pressure
  • Body
  • External Parts
  • Brand
  • Guarantee (From Manufacturing Defect)

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.


CI 100mm 3 Way Fire Brigade Inlet Valve with GM NRV and PVC Female Blank Cap & Chain (Without Ball Valve)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for CI 100mm 3 Way Fire Brigade Inlet Valve

Design Parameters
Inlet Male Instantaneous
Outlet 100 mm NB Flanged
Flange OD 220mm
Flange Thickness 14mm
Flange PCD 180mm
Number of Holes in Flange 8
Hole Diameter / Internal Diameter 19mm
Flange ID (Bore Dia) 100mm
MoC (Material of Construction)
Non Return Valve NRV - GM or NRV - SS or NRV-Brass
Blank Cap Without Female Blank Cap or Female Blank Cap - PVC or Female Blank Cap - Rubber
MOC - Body/All Parts Cast Iron
Chain GI
Inspection Parameters
Test Pressure 14 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
External Parts Buff Polished
General
Brand DEVRAJ
Guarantee (From Manufacturing Defect) 1 year
