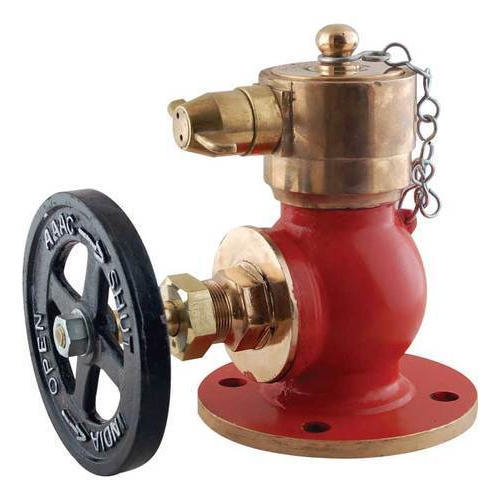

BR 63mm Straight Way Flange End Hydrant Valve (Wheel Valve Pattern Landing Valve)

BR 63mm Straight Way Flange End Hydrant Valve (Wheel Valve Pattern Landing Valve)

GM 63mm GM 63mm Straight Way Hydrant Valve

$ 85.51 85.51393061978136 USD $ 85.51 VAT Excluded

1.00 ₹ VAT Excluded

Size
Inlet
Outlet
Flange OD
Lugs
Flange Thickness
Flange PCD
Number of Holes in Flange
Hole Diameter / Internal Diameter
Flange ID (Bore Dia)
MOC - Body/All Parts
Rubber Washer/Ring
Spring
Other Working Parts
Plunger
Chain
MOC Wheel
Spindle
Male Blank Cap
Seat Pressure
Test Pressure
Working Pressure
Body
Other Parts
- Buff Polished
Wheel
Brand
Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Outlet	Female Instantaneous or Storz Connection
Size	63mm (2 1/2")
Inlet	Flanged
Flange OD	185mm
Lugs	Quick Release Type (BR)
Flange Thickness	12mm
Flange PCD	145mm
Number of Holes in Flange	4
Hole Diameter / Internal Diameter	19mm
Flange ID (Bore Dia)	63mm (2 1/2")

MoC (Material of Construction)
Male Blank Cap	PVC Blank Cap or Gunmetal Blank Cap or Without Blank Cap
MOC - Body/All Parts	Brass
Rubber Washer/Ring	Natural Rubber
Spring	Brass
Other Working Parts	Brass
Plunger	Brass
Chain	GI
MOC Wheel	Cast Iron
Spindle	Brass

Inspection Parameters
Seat Pressure	14kg/cm2
Test Pressure	21 Kg/Cm2
Working Pressure	7 Kg/Cm2

Finish
Body	Powder Coated Red
Other Parts	Buff Polished
Wheel	Painted Black

General
Brand	DEVRAJ/SAFEWORLD
Guarantee (From Manufacturing Defect)	1 year
