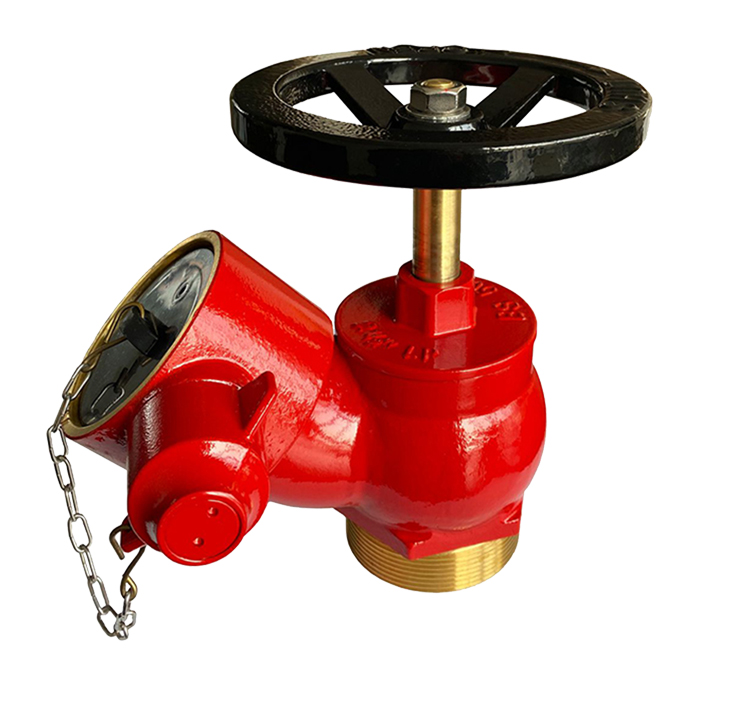

BR 63mm Hydrant Valve Oblique Type 63mm MBSP Inlet x 63mm FI with PVC Cap

https://safeworld.odoo.com/web/image/product.template/27348/image_1920?unique=c6f1dba
(0 review)

60.94 60.93871910733028 USD 60.94 VAT Excluded

1.00 ₹ VAT Excluded

Price against Inquiry

  • Size
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Chain
  • MOC Wheel
  • Blank Cap
  • Spindle
  • Seat Pressure
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Outlet 63mm Female Inst. Adaptor or 50mm Storz connection
Size 63mm (2 1/2")
Inlet Screwed
MoC (Material of Construction)
MOC Wheel Cast Iron or Without Wheel
Blank Cap PVC or Gunmetal or Without Male Blank Cap
MOC - Body/All Parts Brass
Rubber Washer/Ring Natural Rubber
Spring Brass
Chain GI
Spindle Brass
Inspection Parameters
Seat Pressure 10 Kg/Cm2
Test Pressure 14 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Painted Red
Other Parts Buff Polished
Wheel Painted Black
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? Not Applicable
Guarantee (From Manufacturing Defect) 1 year
