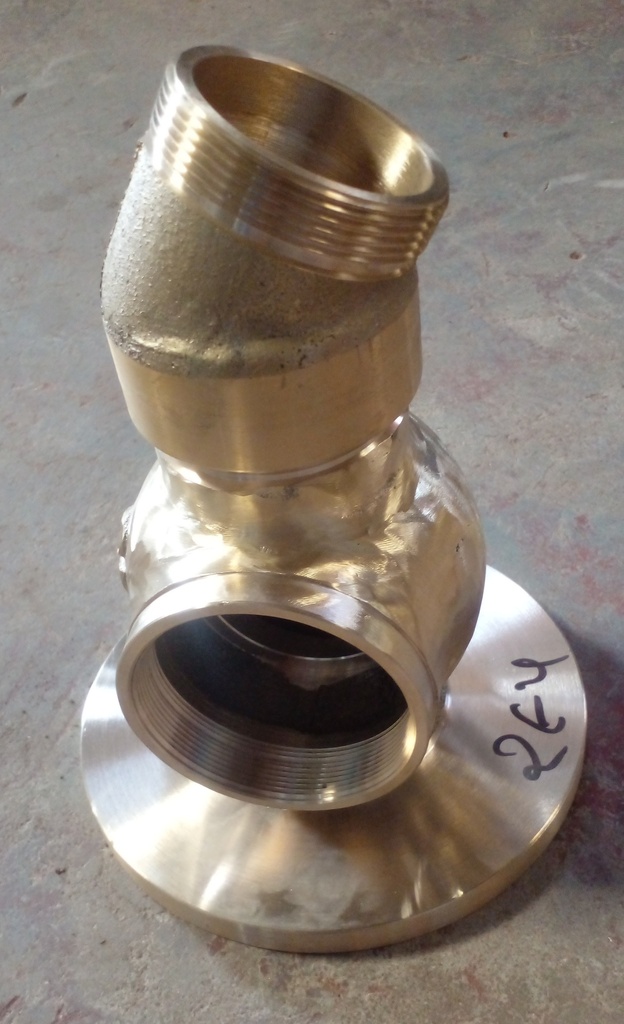

BR 63mm Hydrant Valve Body Bib Nose Type (Flange Type)
(0 review)

0.00 0.0 USD 0.00 VAT Excluded

0.00 ₹ VAT Excluded

Price against Inquiry

  • Size
  • Inlet
  • Outlet
  • Flange OD
  • Lugs
  • Flange Thickness
  • Flange PCD
  • Number of Holes in Flange
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • MOC Wheel
  • Spindle
  • Male Blank Cap
  • Test Pressure
  • Working Pressure
  • Body
  • Other Parts
  • Wheel
  • Brand
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Design Parameters
Size 63mm (2 1/2")
Inlet Flanged
Outlet Female Instantaneous 63mm (2 1/2") x 1 Nos.
Flange OD 191mm
Lugs Pull push Type, Quick Release Type
Flange Thickness 11mm
Flange PCD 152mm
Number of Holes in Flange 4
Hole Diameter / Internal Diameter 19mm
Flange ID (Bore Dia) 75mm (3")
MoC (Material of Construction)
MOC - Body/All Parts Brass
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Brass
Plunger Brass
MOC Wheel Cast Iron
Spindle Brass
Male Blank Cap PVC Blank Cap
Inspection Parameters
Test Pressure 10 kg/cm2
Working Pressure 7 Kg/Cm2
Body Powder Coated Red
Other Parts Powder Coated Red
Wheel Painted Black
Guarantee (From Manufacturing Defect) 1 year
