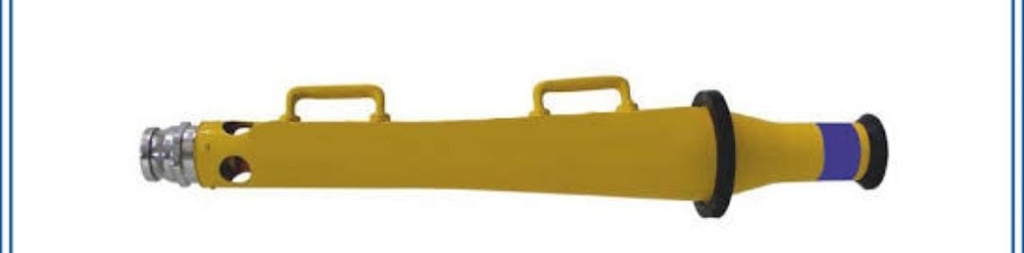

AL Foam Making Branch Pipe FB20x

AL Foam Making Branch Pipe FB20x

Price against Inquiry

Pickup Arrangement
Design Standard (General Reference)
Size
Inlet
Outlet
MOC - Body/All Parts
MoC - Inlet
Ventury
Pick-up Tube
Rubber Washer/Ring
Other Working Parts
MOC Wheel
Throw
Pickup Tube
Basket
Flow (in LPM)
Working Pressure
External Parts
ISI Marked?
Guarantee (From Manufacturing Defect)
Brand
- DEVRAJ

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design Parameters
Pickup Arrangement	With In-built Pickup Arrangement or Without Pickup Arrangement
Design Standard (General Reference)	IS 2097
Size	63mm (2 1/2")
Inlet	Male Instantaneous
Outlet	Foam Discharge pipe

MoC (Material of Construction)
MOC - Body/All Parts	Aluminised Glass Fiber
MoC - Inlet	Inlet - Gunmetal
Ventury	Gun Metal
Pick-up Tube	PVC Braided Pipe
Rubber Washer/Ring	Natural Rubber
Other Working Parts	Aluminium
MOC Wheel	Aluminium

Functional Parameters
Pickup Tube	With Pickup Tube or Without Pickup Tube
Throw	18 Meter Jet
Basket	10 Times
Flow (in LPM)	54 M3/Hr (900 LPM)

Inspection Parameters
Working Pressure	7kg / cm2

Finish
External Parts	Painted Red, Powder Coated Red, Powder Coated Yellow

General
ISI Marked?	No
Guarantee (From Manufacturing Defect)	1 Year
Brand	DEVRAJ
