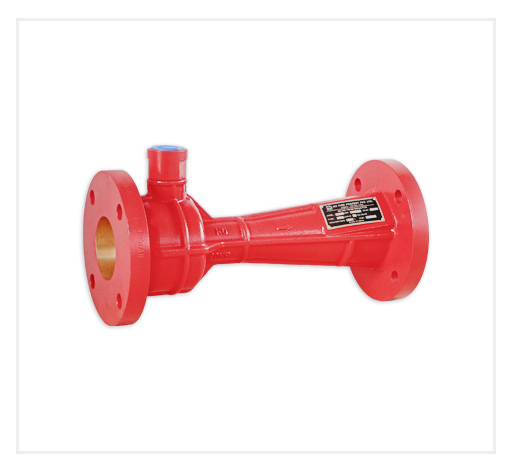

AL 63mm Inline Inductor (Flange type)

https://safeworld.odoo.com/web/image/product.template/26238/image_1920?unique=e029ded
(0 review)

Aluminium 63mm (65mm) Fixed Inline Inductor (Flange type) having Flange Size 2 1/2" as per ANSI 16.5 150# (or as per request) with suitable Foam Inlet for specified induction rate.

107.40 107.40285474391268 USD 107.40 VAT Excluded

8,500.00 ₹ VAT Excluded

Price against Inquiry

  • Flange OD
  • Flange PCD
  • Hole Diameter / Internal Diameter
  • Flange ID (Bore Dia)
  • Foam Inlet
  • Ventury Size
  • MOC - Body/All Parts
  • Ventury
  • MOC - Foam Connection Adaptor
  • Flow (in LPM)
  • Test Pressure
  • Working Pressure
  • External Colour
  • Brand
  • Guarantee (From Manufacturing Defect)

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Specifications

Design Parameters
Flange OD 185mm
Flange PCD 140mm
Hole Diameter / Internal Diameter 19mm
Flange ID (Bore Dia) 75mm (3")
Foam Inlet 25mm (1") Female BSP Threaded
Ventury Size 19mm
MoC (Material of Construction)
MOC - Body/All Parts Body - Aluminium
Ventury Aluminium
MOC - Foam Connection Adaptor Copper Alloy
Functional Parameters
Flow (in LPM) 225-250 LPM
Inspection Parameters
Test Pressure 14 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
External Colour Red
General
Brand DEVRAJ/SAFEWORLD
Guarantee (From Manufacturing Defect) 1 Year
