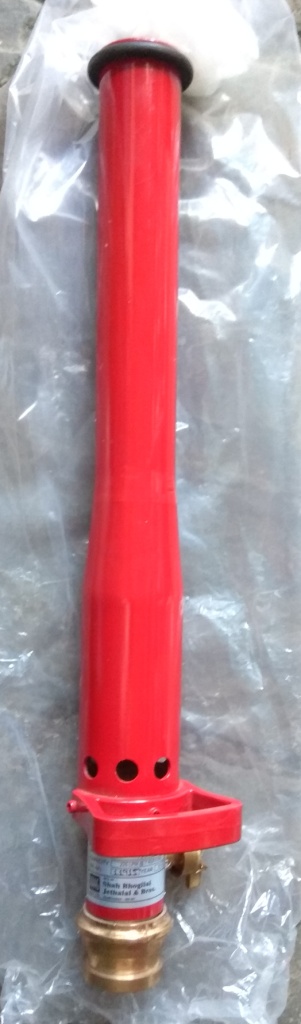

AL 63mm FB5x Foam Making Branch Pipe Long Type (Male - Gunmetal, With Pickup Tube)

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • MOC - Body/All Parts
  • Ventury
  • Male / Female
  • Pick-up Tube
  • Rubber Washer/Ring
  • Other Working Parts
  • MOC Wheel
  • Throw
  • Flow (in LPM)
  • Working Pressure
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for AL 63mm FB5x Foam Making Branch Pipe Long Type (Male - Gunmetal, With Pickup Tube)

Design Parameters
Design Standard (General Reference) IS 2097
Size 63mm (2 1/2")
Inlet Male Instantaneous
Outlet Foam Discharge pipe
MoC (Material of Construction)
MOC - Body/All Parts Aluminium
Ventury Gun Metal
Male / Female Aluminium Alloys, Stainless Steel, Gun Metal
Pick-up Tube PVC Braided Pipe
Rubber Washer/Ring Natural Rubber
Other Working Parts Aluminium
MOC Wheel Aluminium
Functional Parameters
Throw 18 Meter Jet
Flow (in LPM) 225-250 LPM
Inspection Parameters
Working Pressure 7 Kg/Cm2
Finish
External Parts Painted Red, Powder Coated Red, Powder Coated Yellow
General
Brand AAAG
ISI Marked? Not Applicable
Guarantee (From Manufacturing Defect) 1 Year
