AL 63mm Dividing Breech as per IS 905

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • Test Pressure
  • Working Pressure
  • Body
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

0.00 0.0 USD 0.00

1.00 ₹

This combination does not exist.

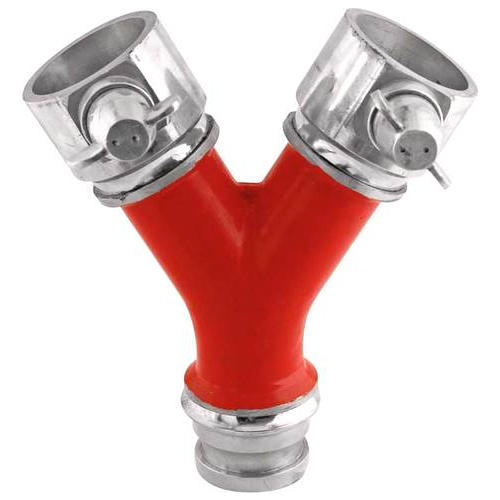

Aluminium Alloy 63mm DIVIDING BREECH AS PER IS 905

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for AL 63mm Dividing Breech as per IS 905

Design Parameters
Design Standard (General Reference) IS 905
Size 63mm (2 1/2")
Inlet Male Instantaneous - 63mm
Outlet Female Instantaneous - 63mm x 2 Nos.
Lugs Quick Release Type
MoC (Material of Construction)
MOC - Body/All Parts Aluminium
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Aluminium
Plunger Brass
Inspection Parameters
Test Pressure 14 kg/cm2
Working Pressure 7 Kg/Cm2
Finish
Body Powder Coated Red
General
Brand DEVRAJ
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
