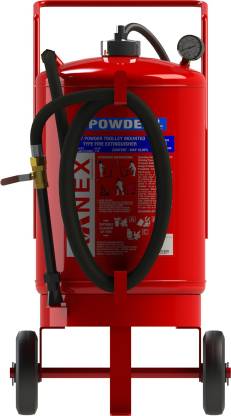

ABC 50Kg Fire Extinguisher Trolley Mounted (Co2 Outside Cylinder)- KANEX
(0 review)

"KANEX" DCP trolley mounted Fire Extinguisher Cap. 50 kg. filled with Mono Ammonium Phosphate Powder 50% confirm to IS 4308 Applicable fire classes A, B & C, Gross Weight 120 Kg, empty Weight 70 Kg, Can Height 1020mm, Diameter 400 ± 10mm, External CO2 gas Cylinder of 2 kg (PESO Approved), Discharge mechanism of EPDM Hose with SS spring of 300mm to avoid kink (5 meters long) & shut off nozzle, Discharge Time 40Secs, Jet Range 7.5 Meters, Average Discharge is 85%, Body Construction by MIG Welding technology, Brass forged cap with Auto safety release mechanism at 21 kg/cm2, Internal Coating - Epoxy Powder coating, External Coating - Pure Polyester Powder coating. Sheet metal thickness: 4 mm, Confirms to IS 16018:2012, ISI MARKED, Fire rating: 20A:233B

0.00 0.0 USD 0.00 VAT Excluded

0.00 ₹ VAT Excluded

Price against Inquiry

  • Design Standard (General Reference)
  • Charged Weight
  • Capacity
  • Capacity
  • Extinguishing Agent
  • Total Height
  • Diameter
  • Operating Temperature
  • MOC - Body/All Parts
  • Discharge Capacity
  • Fire Rating
  • Used for which Class of Fire
  • Discharge Time
  • Jet Range
  • Test Pressure
  • Service Pressure
  • Body
  • Brand
  • MAP %
  • Approved

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Design Parameters
Design Standard (General Reference) IS 16018
Charged Weight 120 kg
Capacity 50Kg, 50Kg
Extinguishing Agent ABC Powder (Mono ammonium phosphate)
Total Height 1020 mm
Diameter 400 + 100 mm
Operating Temperature -30 °C to +55 °C
MoC (Material of Construction)
MOC - Body/All Parts Mild Steel
Functional Parameters
Discharge Capacity 85%
Fire Rating 20A : 233B
Used for which Class of Fire Class-A, Class-B, Class-C & Electric Fire
Discharge Time 30 Sec
Jet Range 6 Meters
Inspection Parameters
Test Pressure 35 Bar
Service Pressure 14 Bar
Body Painted Red, Powder Coated Red
MAP % MAP 50% or MAP 90%
Approved Approved - BIS- ISI Marked or ISI Marked
