GM 63mm Collecting Breaching As per IS 905

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • Test Pressure
  • Working Pressure
  • Body
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

63.08 63.08 USD 63.08

4,120.00 ₹

This combination does not exist.

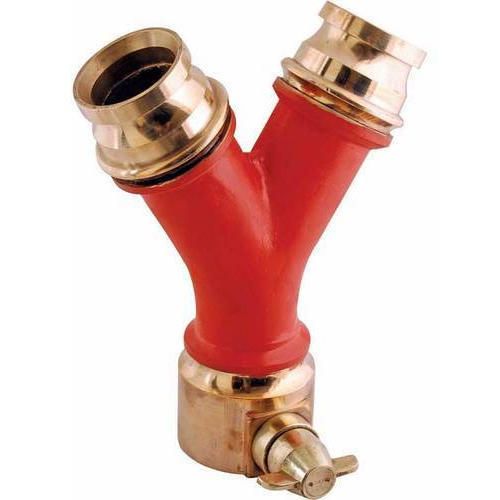

GUN METAL 63mm COLLECTING BREECH AS PER IS 905

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


30-day money-back guarantee
Buy now, get in 2 days


Specifications for GM 63mm Collecting Breaching As per IS 905

Design Parameters
Lugs Single Lug Type or Double Lug Type
Design Standard (General Reference) IS 905
Size 63mm (2 1/2")
Inlet Female Instantaneous
Outlet Female Instantaneous - 63mm x 2 Nos.
MoC (Material of Construction)
MOC - Body/All Parts Gunmetal
Rubber Washer/Ring Natural Rubber
Spring Brass
Other Working Parts Gunmetal
Plunger Brass
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Painted Red
External Parts Buff Polished
General
Brand DEVRAJ
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
