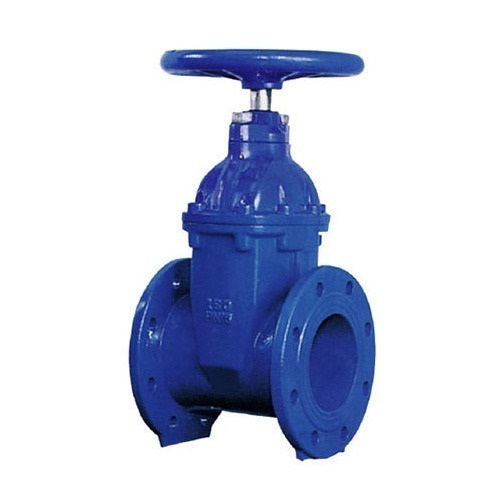

CI Sluice Valve PN-10 KARTAR Make
KARTAR SLUICE VALVE,IS:14846,PN-1.0,C.I.(IS: 210
GR FG-200)Bolted Bonnet,
Inside Screw,Non- Rising Stem,Renewable Seat, Solid
Wedge,Cu - alloy ,
Stem SS IS 6603 (12 Cr. 13), Lubricated Hemp and
Jute, Carbon Steel
(IS : 1367) ,Rubber (IS 638 Type B),Flanges as per
IS:1538,PN 1.0 FF (Drilled)
As Per IS 14846B.T.P. -1.5 MPa Hyd.,: S.T.P. - 1.0 MPa
30-day money-back guarantee
Buy now, get in 2 days
Specifications for CI Sluice Valve PN-10 KARTAR Make
Design Parameters | |
---|---|
Size | 50mm (2") or 100mm (4") or 150mm (6") or 200mm (8") or 250mm (10") or 80MM |
MoC (Material of Construction) | |
MOC - Body/All Parts | Cast Iron |
General | |
Brand | Kartar |
ISI Marked? | Yes |
