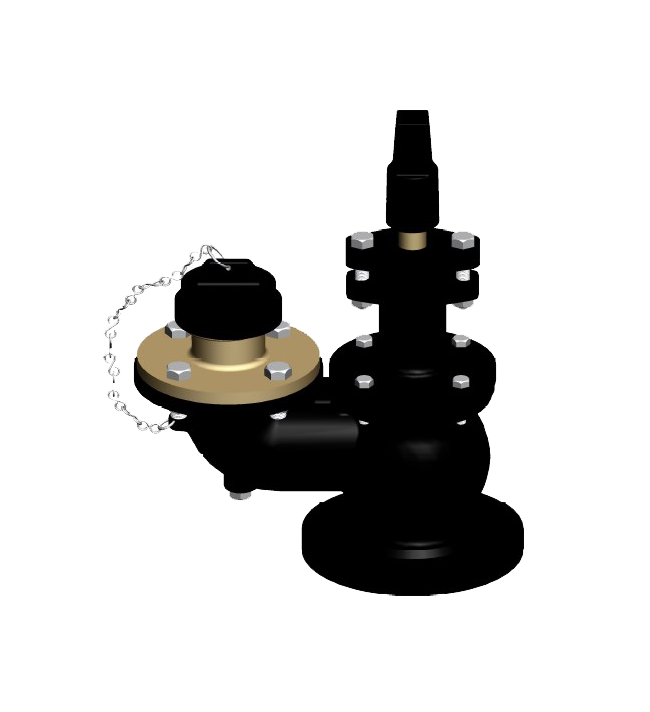

Specifications for CI/DI 63mm Underground Hydrant Valve
| Design Parameters | |
|---|---|
| Size | 63mm (2 1/2") |
| Inlet | Flanged - 75/100 NB IS:1538/ ANSI B16.5 150# |
| Outlet | Female Instantaneous |
| Flange OD | 200mm (As per DN 80) |
| Flange Thickness | 19.5mm |
| Flange PCD | 159mm - 160mm |
| Number of Holes in Flange | 4 |
| Hole Diameter / Internal Diameter | 19mm |
| Flange ID (Bore Dia) | 75mm (As per DN 80) |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Cast Iron, FG 200 IS:210-1978/Ductile Iron |
| Outlet Adaptor | Gunmetal IS:318 LTB2 |
| Rubber Washer/Ring | Rubber,IS:937 |
| Spring | Phosphor Bronze |
| Other Working Parts | Gunmetal |
| Chain | GI |
| MOC Wheel | Cast Iron |
| Blank Cap | Female Blank Cap - PVC, Aluminium 4450 IS:617 |
| Spindle | Brass, IS: 319-1974 |
| Inspection Parameters | |
| Seat Pressure | 14kg/cm2 |
| Test Pressure | 21 Kg/Cm2 |
| Working Pressure | 7 Kg/Cm2 |
| Finish | |
| Body | Black |
| Wheel | Painted Black |
| General | |
| Brand | DEVRAJ/SAFEWORLD |
| Guarantee (From Manufacturing Defect) | 1 Year |
