CA 63mm Dividing Breaching As per IS 905

https://safeworld.odoo.com/web/image/product.template/1480/image_1920?unique=fe298d1
(0 avis)

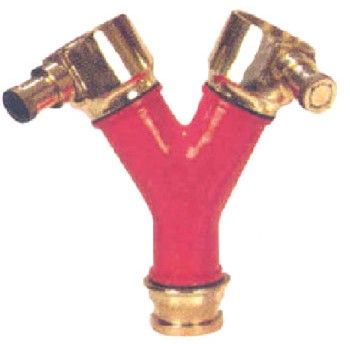

Copper Alloy 63mm DIVIDING BREECH AS PER IS 905

67,87 67.87 USD 67,87 Hors TVA

5 375,00 ₹ Hors TVA

Price against Inquiry

  • Design Standard (General Reference)
  • Size
  • Inlet
  • Outlet
  • Lugs
  • MOC - Body/All Parts
  • Rubber Washer/Ring
  • Spring
  • Other Working Parts
  • Plunger
  • Test Pressure
  • Working Pressure
  • Body
  • External Parts
  • Brand
  • ISI Marked?
  • Guarantee (From Manufacturing Defect)

Cette combinaison n'existe pas.

Conditions générales
Garantie satisfait ou remboursé de 30 jours
Expédition : 2-3 jours ouvrables


Spécifications

Design Parameters
Lugs Quick Release Type (BR) ou Pull Push Type (BR)
Design Standard (General Reference) IS 905
Size 63mm (2 1/2")
Inlet Male Instantaneous - 63mm
Outlet Female Instantaneous - 63mm x 2 Nos.
MoC (Material of Construction)
MOC - Body/All Parts Copper Alloy
Rubber Washer/Ring Natural Rubber
Spring Phosphor Bronze
Other Working Parts Copper Alloy
Plunger Brass
Inspection Parameters
Test Pressure 21 Kg/Cm2
Working Pressure 7 Kg/Cm2
Finish
Body Painted Red
External Parts Buff Polished
General
Brand DEVRAJ/SAFEWORLD
ISI Marked? No
Guarantee (From Manufacturing Defect) 1 year
